Operating System Support for Extensible Secure File Systems
A RESEARCH PROFICIENCY EXAM PRESENTED
BY
CHARLES P. WRIGHT
STONY BROOK UNIVERSITY
Technical Report FSL-04-02
May 2004
Abstract of the RPE
Operating System Support for Extensible Secure File Systems
by
Charles P. Wright
Stony Brook University
2004
Securing data is more important than ever, yet secure file systems
still have not received wide use. There are five primary security
considerations: confidentiality, integrity, availability,
authenticity, and non-repudiation. In this paper we analyze file
systems that improve confidentiality and availability. We chose to
focus on these two aspects, because theft of information and
denial-of-service are the two largest costs associated with attacks.
Cryptographic file systems improve the confidentiality of files,
because cleartext information is never stored on disk. One barrier to
the adoption of cryptographic file systems is that the performance
impact is assumed to be too high, but in fact is largely unknown. In
this paper we first survey available cryptographic file systems, and
perform a performance comparison of a representative set of the
systems, emphasizing multiprogrammed workloads. We show the overhead of
cryptographic file systems can be minimal for many real-world
workloads.
We have observed not only general trends with each of the
cryptographic file systems we compared but also anomalies based on
complex interactions with the operating system, disks, CPUs, and ciphers.
Snapshotting and versioning systems increase availability, because
before data is modified or deleted, a copy is made. This prevents an
attacker from destroying valuable data. Indeed, snapshotting and
versioning are useful beyond security applications. Users or
administrators often make mistakes, which result in the destruction of
data; snapshotting or versioning allow simple recovery from such
mistakes. A useful extension of snapshotting is sandboxing: allowing
suspect processes to modify a separate copy of the data, while the
original data remains intact.
We then discuss operating system changes we made to support our
encryption and snapshotting file systems. Finally, we conclude by
suggesting future OS enhancements and potential improvements to
existing cryptographic file systems.
To my family - old and new.
Contents
1 Introduction
2 Cryptographic File System Survey
2.1 Block-Based Systems
2.1.1 Cryptoloop
2.1.2 CGD
2.1.3 GBDE
2.1.4 SFS
2.1.5 BestCrypt
2.1.6 vncrypt
2.1.7 OpenBSD vnd
2.2 Disk-Based File Systems
2.2.1 EFS
2.2.2 StegFS
2.3 Network Loopback Based Systems
2.3.1 CFS
2.3.2 TCFS
2.4 Stackable File Systems
2.4.1 Cryptfs
2.4.2 NCryptfs
2.4.3 ZIA
2.5 Applications
2.6 Ciphers
2.6.1 DES
2.6.2 Blowfish
2.6.3 AES (Rijndael)
2.6.4 Tweakable Ciphers
3 Encryption File System Performance Comparison
3.1 Experimental Setup
3.1.1 System Setup
3.1.2 Testbed
3.2 PostMark
3.2.1 Workstation Results
3.2.2 File Server Results
3.3 PGMeter
3.4 AIM Suite VII
3.5 Other Benchmarks
4 Snapshotting and Versioning Systems Survey
4.1 Block-Based Systems
4.1.1 FreeBSD Soft Updates
4.1.2 Clotho
4.1.3 Venti
4.2 Disk-Based File Systems
4.2.1 Write Anywhere File Layout
4.2.2 Ext3cow
4.2.3 Elephant File System
4.2.4 Comprehensive Versioning File System
4.3 Stackable File Systems
4.3.1 Unionfs Snapshotting and Sandboxing
4.3.2 Versionfs
4.4 User-level Libraries
4.4.1 Cedar File System
4.4.2 3D File System
4.5 Applications
5 Operating System Changes
5.1 Split-View Caches
5.2 Cache Cleaning
5.3 File Revalidation
5.4 On-Exit Callbacks
5.5 User-Space Callbacks
5.6 Bypassing VFS Permissions
6 Conclusions and Future Work
6.1 Snapshotting and Versioning Systems
6.2 Cryptographic File Systems
6.3 Future Work
List of Figures
2.1 Call paths of storage encryption systems
(a) Cryptoloop (raw device)
(b) Cryptoloop (file)
(c) CFS
(d) TCFS
(e) Stackable file systems

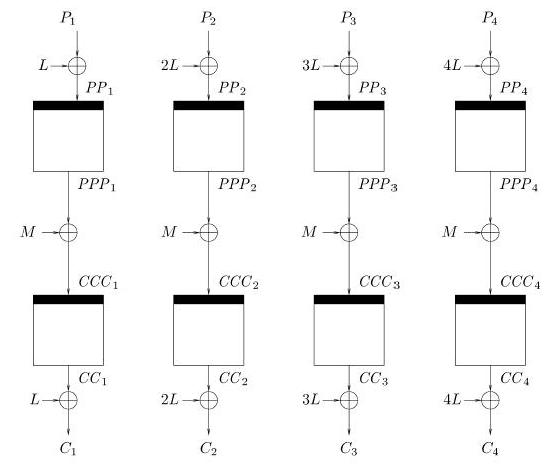

2.2 AES-EME mode

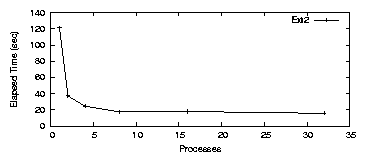

3.1 PostMark: Ext2 elapsed time for the workstation

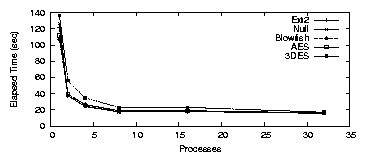

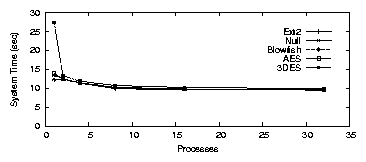

3.2 PostMark: LOOPDEV for the workstation
(a) Elapsed time
(b) System time

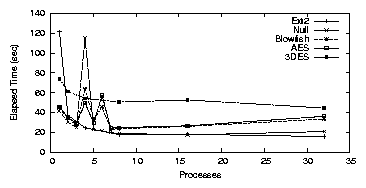

3.3 PostMark: LOOPDD elapsed time for the workstation

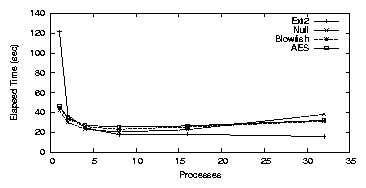

3.4 PostMark: LOOPDEV elapsed time for the workstation, with nfract_sync=90%

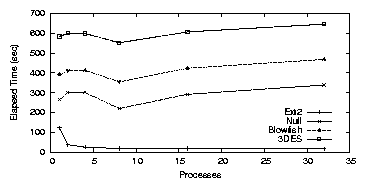

3.5 PostMark: CFS elapsed time for the workstation

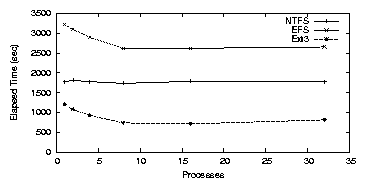

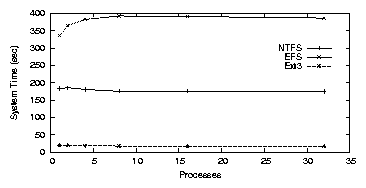

3.6 PostMark: NTFS on the workstation
(a) Elapsed time
(b) System time

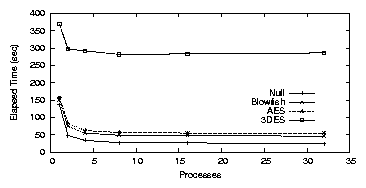

3.7 PostMark: NCryptfs Workstation elapsed time

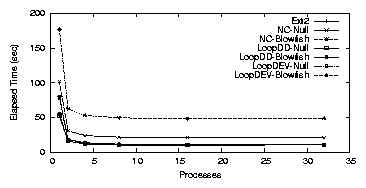

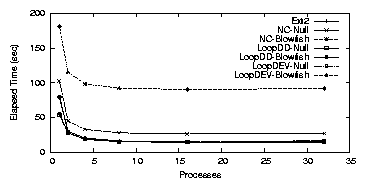

3.8 PostMark: File server elapsed time
(a) One CPU
(b) Two CPUs

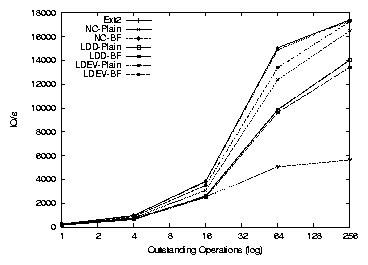

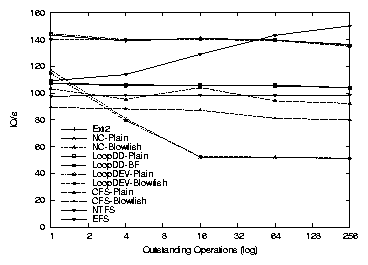

3.9 PGMeter: I/O operations per second
(a) Workstation
(b) File server

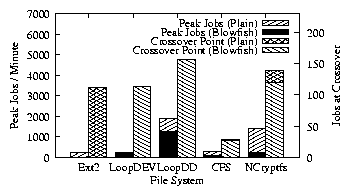

3.10 AIM7 results for the workstation

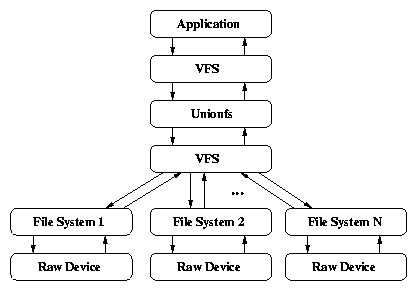

4.1 Call paths of fanout file systems

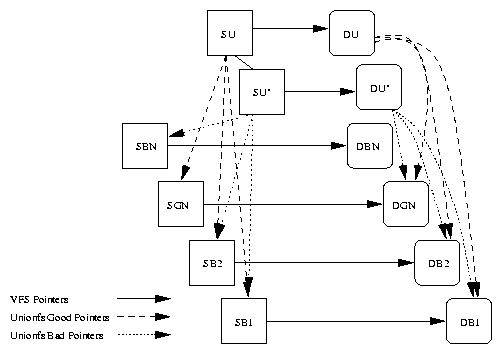

5.1 VFS structures for a sandboxed Unionfs

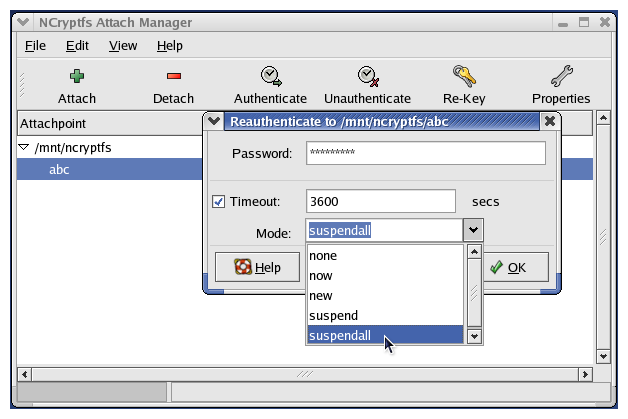

5.2 The NC-Tools re-key dialog
List of Tables
3.1 Peformance related features
3.2 Workstation raw encryption speeds for AES, Blowfish and 3DES
\LARGE{{Acknowledgments}}
Acknowledgments
The largest thanks go to Mariya who has endured the countless days,
nights, and weekends in the lab that went into this work. My advisor,
Erez Zadok, has always been available, helpful, and without him I
would not have been able to complete this research. I performed the
benchmarking of cryptographic file systems with Jay Dave. Puja Gupta,
Harikesavan Krishan, and Mohammad Nayyer Zubair wrote much of the
original Unionfs code that became the basis for snapshotting and
sandboxing.
My other lab mates have also been great to work with. I would be
remiss if I did not acknowledge Kiran Reddy who sat next to me
debugging race conditions for months on end.
My committee members, R. Sekar and Tzi-cker Chiueh, were generous of
their time and provided helpful input and comments on the work.
The anonymous SISW and USENIX reviewers provided very useful comments
that improved the quality of this work.
Jim Hughes, Serge Plotkin, and others at the IEEE SISW workshop also
provided valuable comments.
Anton Altaparmakov and Szakacsits Szabolcs helped us to understand the
behavior of NTFS.
This work was partially made possible thanks to NSF CAREER award
EIA-0133589, NSF award CCR-0310493, and HP/Intel gifts numbers
87128 and 88415.1.
Securing data is more important than ever. As the Internet has become
more pervasive, attacks have grown. Widely-available studies report
millions of dollars of lost revenues due to security breaches
[45,51]. Moreover, the theft of proprietary
information consistently caused the greatest financial loss.
Data loss, either malicious or accidental, also costs millions of
dollars [30,15]. Backup companies
report that on average, 20MB of data takes 30 hours to create and is
worth almost $90,000 [3].
In this report we survey solutions to these two important problems in
storage security. To protect confidentiality we investigate
encryption file systems; and to protect data availability we
investigate versioning and snapshotting systems. We then discuss
operating system improvements that we have made to support our
encryption and snapshotting file systems.
We believe there are three primary factors when evaluating encrypting
file systems: security, performance, and ease-of-use. These concerns
often compete; for example, if a system is too difficult to use, then
users simply circumvent it entirely. Furthermore, if users perceive
encryption to slow down their work, they just turn it off. Though
performance is an important concern when evaluating cryptographic file
systems, no rigorous real-world comparison of their performance has
been done to date.
Riedel described a taxonomy for evaluating the performance and
security that each type of system could theoretically provide
[52]. His evaluation encompassed a broad array of
choices, but because it was not practical to benchmark so many
systems, he only drew theoretical conclusions. In practice, however,
deployed systems interact with disks, caches, and a variety of other
complex system components - all having a dramatic effect on
performance.
We expect cryptographic file systems to become a commodity component
of future operating systems. In this paper we perform a real world
performance comparison between several systems that are used to secure
file systems on laptops, workstations, and moderately-sized file
servers. We also emphasize multi-programming workloads, which are not
often investigated. Multi-programmed workloads are becoming more
important even for single user machines, in which Windowing systems
are often used to run multiple applications concurrently.
We present results from a variety of benchmarks, analyzing the
behavior of file systems for metadata operations, raw I/O operations,
and combined with CPU intensive tasks.
We also use a variety of hardware to ensure that our results are valid
on a range of systems: Pentium vs. Itanium, single CPU vs. SMP, and
IDE vs. SCSI.
We observed general trends with each of the cryptographic file systems
we compared. We also investigated anomalies due to complex,
counterintuitive interactions with the operating system, disks, CPU,
and ciphers. We propose future directions and enhancements to make
systems more reliable and predictable.
We also believe that snapshotting and versioning systems are likely to
become common OS components. We define snapshotting as the act of
creating a consistent view of an entire file system, and versioning as
making backup copies of individual files. Snapshotting systems are
useful for system administrators and multi-user systems, they
essentially provide on-line and instant backups that can protect
against software errors and user actions.
If an attacker modifies data, the system administrator can quickly
revert to the latest snapshot, or easily find the changes made since
the last snapshot.
Versioning, on the other hand, is useful to end users, because they are
able to examine changes to their own files in detail.
Versioning systems are also typically more fine-grained than a
snapshotting system. Versions can be created on each write to a file,
but having so many versions of a file system would have a large
performance impact and be difficult for the system administrator to
manage.
Snapshotting and versioning have uses beyond security.
For example, system administrators need to know what changes are made
to the system while installing new software. If the installation
failed, the software does not work as advertised, or is not needed,
then the administrator often wants to revert to a previous good system
state. In this case a snapshotting system is ideal, because the
entire file system state can easily be reverted to the preinstall
snapshot.
Simple mistakes such as the accidental modification of files could be
ameliorated if users could simply execute a single command to
undo such accidental changes. In this case, a versioning file system
would allow the user to recover this individual file, without
affecting other files (or other users' data).
The rest of this paper is organized as follows.
Chapter 2 surveys cryptographic file systems and
ciphers.
Chapter 3 compares the performance of a cross section of
cryptographic file systems.
Chapter 4 surveys snapshotting and versioning
file systems.
Chapter 5 describes operating system changes we have
made in support of our new file systems.
We conclude in Chapter 6 and present possible future
directions.
Chapter 2
Cryptographic File System Survey
This section describes a range of available techniques of encrypting
data and is organized by increasing levels of abstraction: block-based
systems, native disk file systems, network-based file systems,
stackable file systems, and encryption applications. We conclude this
section by discussing ciphers that are suitable for encrypted storage.
2.1 Block-Based Systems
Block-based encryption systems operate below the file system level,
encrypting one disk block at a time. This is advantageous because
they do not require knowledge of the file system that resides on top
of them, and can even be used for swap partitions or applications that
require access to raw partitions (e.g., database servers). Also, they
do not reveal information about individual files (e.g., sizes) or
directory structure.
2.1.1 Cryptoloop
The Linux loopback device driver presents a file as a block device,
optionally transforming the data before it is written and after it is
read from the native file, usually to provide encryption. Linux
kernels include a cryptographic framework, CryptoAPI [53]
that exports a uniform interface for all ciphers and hashes.
Presently, IPsec and the Cryptoloop driver use these facilities.
We investigated three backing stores for the loopback driver: (1) a
preallocated file created using dd filled with random data,
(2) a raw device (e.g., /dev/hda2), and (3) a sparse backing
file created using truncate(2).
Figure 2.1(a) shows the path that data takes from
an application to the file system, when using a raw device as a
backing store. Figure 2.1(b) shows the path when
a file is used as the backing store. The major difference between the
two systems is that there is an additional file system between the
application and the disk when using a file instead of a device. Using
files rather than devices adds performance penalties including cutting
the effective buffer cache in half because blocks are stored in memory
both as encrypted and unencrypted data.
Each of these methods has advantages and disadvantages related to
security and ease-of-use as well. Using preallocated files is more
secure than using sparse files, because an attacker can not
distinguish random data in the file from encrypted data. However, to
use a preallocated file, space must be set aside for encrypted files
ahead of time.
Using a sparse backing store means that space does not need to be
preallocated for encrypted data, but reveals more about the structure
of the file system (since the attacker knows where and how large the
holes are).
Using a raw device allows an entire disk or partition to be encrypted,
but requires repartitioning, which is more complex than simply
creating a file. Typically there are also a limited number of
partitions available, so on multi-user systems encrypted raw devices
are not as scalable as using files as the backing store.
In Linux 2.6.4, the Cryptoloop driver has been deprecated by dm-crypt.
dm-crypt uses the generic device mapping API provided by 2.6 that is
also used by the LVM subsystem. dm-crypt is similar to Cryptoloop,
and the architectural overview remains the same. dm-crypt still uses
the CryptoAPI, and the on-disk encryption format has remained the
same. There are two key implementation advantages of dm-crypt over
Cryptoloop: (1) encryption is separated from the loopback
functionality, and (2) dm-crypt uses memory pools to prevent memory
allocation from within the block device driver (eliminating deadlocks
under memory pressure).
[Cryptoloop (raw device)]
[Cryptoloop (file)]
[CFS]
[TCFS]
[Stackable file systems]
Figure 2.1: Call paths of storage encryption systems.
The CryptoGraphic Disk driver, available in NetBSD, is similar to the
Linux loopback device, and other loop-device encryption systems, but
it uses a native disk or partition as the backing store
[13]. CGD has a fully featured suite of user-space
configuration utilities that include n-factor authentication and
PKCS#5 for transforming user passwords into encryption keys
[54]. This system is similar to Cryptoloop using a raw
device as a backing store.
GEOM-based disk encryption (GBDE) is based on GEOM, which provides a
modular framework to perform transformations ranging from simple
geometric displacement for disk partitioning, to RAID algorithms, to
cryptographic protection of the stored data. GBDE is a GEOM transform
that enables encrypting an entire disk [28].
GBDE hashes a user-supplied passphrase into 512 bits of key material.
GBDE uses the key material to locate and encrypt a 2048 bit master key
and other metadata on four distinct lock sectors.
When an individual sector is encrypted, the sector number and bits of
the master key are hashed together using MD5 to create a kkey.
A randomly generated key, the sector key, is encrypted with the
kkey, and then written to disk. Finally, the sector's payload
is encrypted with the sector key and written to disk.
This technique, though more complex, is similar to Cryptoloop using a
raw device as a backing store.
SFS is an MSDOS device driver that encrypts an entire
partition [21]. SFS is similar to Cryptoloop using a
raw device as a backing store. Once encrypted, the driver presents a
decrypted view of the encrypted data. This provides the convenient
abstraction of a file system, but relying on MSDOS is risky because
MSDOS provides none of the protections of a modern operating system.
BestCrypt is a commercially available loopback
device driver supporting many ciphers [27]. BestCrypt
supports both Linux and Windows, and uses a normal file as a backing
store (similar to using a preallocated file with Cryptoloop).
vncrypt is the cryptographic disk driver for FreeBSD, based on the
vn(4) driver that provides a disk-like interface to a file. vncrypt
uses a normal file as a backing store (similarly to using a
preallocated file with Cryptoloop) and provides a character device
interface, which FreeBSD uses for file systems and swap devices.
vncrypt is similar to using Cryptoloop with a file as a backing store.
2.1.7 OpenBSD vnd
Encrypted file systems support is part of OpenBSD's Vnode Disk Driver,
vnd(4). vnd uses two modes: one bypasses the buffer
cache, the second uses the buffer cache. For encrypted devices, the
buffer cache must be used to ensure cache coherency on unmount. The
only encryption algorithm implemented so far is Blowfish.
vnd is similar to using Cryptoloop with a file as a backing
store.
2.2 Disk-Based File Systems
Disk-based file systems that encrypt data are located at a higher
level of abstraction than block-based systems. These file systems
have access to all per-file and per-directory data, so they can
perform more complex authorization and authentication than block-based
systems, yet at the same time disk-based file systems can control the
physical data layout. This means that disk-based file systems
can limit the amount of information revealed to an attacker about file
size and owner, though in practice these attributes are often still
revealed in order to preserve the file system's on-disk structure. Additionally, since there is no additional layer of
indirection, disk-based file systems can have performance benefits
over other techniques described in this section (including the
loop devices).
EFS is the Encryption File System found in Microsoft Windows, based on
the NT kernel (Windows 2000 and XP) [37]. It is an
extension to NTFS and utilizes Windows authentication methods as well
as Windows ACLs [39,52]. Though EFS is
located in the kernel, it is tightly coupled with user-space DLLs to
perform encryption and the user-space Local Security Authentication
Server for authentication [61]. This prevents EFS from
being used for protecting files or folders in the root or
\winnt directory. Encryption keys are stored on
the disk in a lockbox that is encrypted using the user's login
password. This means that when users change their password, the
lockbox must be re-encrypted. If an administrator changes the user's
password, then all encrypted files become unreadable. Additionally,
for compatibility with Windows 2000, EFS uses DESX
[57] by default and the only other available
cipher is 3DES (included in Windows XP or in the Windows 2000 High
Encryption pack).
StegFS is a file system that employs steganography as well as
encryption [35]. If adversaries inspect the
system, then they only know that there is hidden data, but not its
content or the extent of what is hidden. This is achieved via a
modified Ext2 kernel driver that keeps a separate block-allocation
table per
security level. It is not possible to determine how many
security levels exist without the key to each security level. When
the disk is mounted with an unmodified Ext2 driver, random blocks may
be overwritten, so data is replicated randomly throughout the disk to
avoid data loss. Although StegFS achieves plausible deniability of
data's existence, the performance degradation is a factor of 6-196,
making it impractical for most applications.
2.3 Network Loopback Based Systems
Network-based file systems (NBFSs) operate at a higher level of
abstraction than disk-based file systems, so NBFSs can not control the
on-disk layout of files. NBFSs have two major advantages: (1) they
can operate on top of any file system, and (2) they are more portable
than disk-based file systems. NBFS's major disadvantages are
performance and security. Since each request must travel through the
network stack, more data copies are required and performance suffers.
Security also suffers because NBFS are vulnerable to all of the
weaknesses of the underlying network protocol (usually NFS
[70,60]).
CFS is a cryptographic file system that is implemented as a user-level
NFS server [6]. The cipher and key are specified
when encrypted directories are first created. The CFS daemon is
responsible for providing the owner with access to the encrypted data
via an attach command. The daemon, after verifying the user ID
and key, creates a directory in the mount point directory that acts as
an unencrypted window to the user's encrypted data. Once attached,
the user accesses the attached directory like any other directory.
CFS is a carefully designed, portable file system with a wide choice
of built-in ciphers. Its main problem, however, is performance.
Since it runs in user mode, it must perform many context switches
and data copies between kernel and user space. As can be seen in
Figure 2.1(c), since CFS has an unmodified NFS client which
communicates with a modified NFS server, it must run only over the
loopback network interface, lo.
TCFS is a cryptographic file system that is implemented as a modified
kernel-mode NFS client. Since it is used in conjunction with an NFS
server, TCFS works transparently with the remote file system. To
encrypt data, a user sets an encrypted attribute on directories and
files within the NFS mount point [8,34]. TCFS
integrates with the UNIX authentication system in lieu of requiring
separate passphrases. It uses a database in /etc/tcfspwdb to
store encrypted user and group keys. Group access to encrypted
resources is limited to a subset of the members of a given UNIX group,
while allowing for a mechanism (called threshold secret
sharing) for reconstructing a group key when a member of a group is
no longer available. As can be seen on the right of Figure
2.1(d), TCFS uses a modified NFS client, which must be
implemented in the kernel. This does, however, allow it to operate over
any network interface and to work with remote servers.
Since TCFS runs on individual clients, and the NFS server is
unmodified this increases scalability because cryptographic processing
takes place on the client instead of the server.
TCFS has several weaknesses that make it less than ideal for
deployment. First, the reliance on login passwords as user keys is not
safe. Also, storing encryption keys on disk in a key database further
reduces security. Finally, TCFS operates only on systems with
Linux kernel 2.2.17 or earlier.
2.4 Stackable File Systems
Stackable file systems are a compromise between kernel-level
disk-based file systems and loopback network file systems. Stackable
file systems can operate on top of any file system; do not copy data
across the user-kernel boundary or through the network stack; and they
are portable to several operating systems
[73].
Cryptfs is the stackable, cryptographic file system and part of the
FiST toolkit [72]. Cryptfs was never designed to be a
secure file system, but rather a proof-of-concept application of FiST
[73]. Cryptfs supports only one cipher and
implements a limited key management scheme. Cryptfs serves as the
basis for several commercial and research systems (e.g., ZIA
[11]). Figure 2.1(e) shows Cryptfs's
operation. A user application invokes a system call through the
Virtual File System (VFS). The VFS calls the stackable file system,
which again invokes the VFS after encrypting or decrypting the data.
The VFS calls the lower level file system, which writes the data to
its backing store.
NCryptfs is our stackable cryptographic file system, designed with the
explicit aim of balancing security, convenience, and performance
[69]. NCryptfs allows system administrators and
users to customize NCryptfs according to their specific
needs. NCryptfs supports multiple concurrent authentication methods,
multiple dynamically-loadable ciphers, ad-hoc groups, and
challenge-response authentication. Keys, active sessions, and
authorizations in NCryptfs all have timeouts. NCryptfs can be
configured to transparently suspend and resume processes based on key,
session or authorization validity.
NCryptfs also enhanced the kernel to discard cleartext pages and
notify the file system on process exit in order to expunge invalid
authentication entries.
Zero-Interaction Authentication (ZIA) uses Cryptfs with Rijndael as a
basis for a system that uses physical locality to authorize use on a
laptop [11]. To effectively use file system encryption,
users must provide the system with a passphrase. Normally, after the
user provides the machine with the passphrase, anyone who physically
possess the machine has access to the data.
The laptop running ZIA communicates with an ancillary device that is
always in the physical possession of the user, (e.g., a wrist-watch)
that provides the laptop with the encryption key over a wireless
channel. When the device leaves the vicinity of the laptop,
all information in the file cache is encrypted. When the user
returns, the information is automatically decrypted.
2.5 Applications
File encryption can be performed by applications such as GPG
[31] or crypt(1) that reside above the file system. This
solution, however, is quite inconvenient for users. Each time they
want to access a file, users must manually decrypt or encrypt
it. The more user interaction is required to encrypt or decrypt
files, the more often mistakes are made, resulting in damage to the
file or leaking confidential data [67]. Additionally, the
file may reside in cleartext on disk while the user is actively working
on it.
File encryption can also be integrated into each application (e.g.,
mail clients), but this shifts the burden from users to applications
programmers. Often applications developers do not believe the extra
effort of implementing features is justified when only a small
fraction of users would take advantage of those features.
Even if encryption is deemed an important enough feature to be
integrated into most applications there are still two major problems
with this approach.
First, each additional application that the user must trust to
function correctly reduces the overall security of the system.
Second, since each application may implement encryption slightly
differently it would make using files in separate programs more
difficult.
2.6 Ciphers
For cryptographic file systems there are several ciphers that may be
used, but those of interest are generally symmetric block ciphers.
This is because block ciphers are efficient and versatile.
We discuss DES variants, Blowfish, and Rijndael because they are often
used for file encryption, and are believed to be secure.
There are many other block ciphers available, including CAST, GOST,
IDEA, MARS, Serpent, RC5, RC6, and TwoFish. Most of them have similar
characteristics with varying block and key sizes.
We also discuss tweakable ciphers, a new cipher mode which is
especially suited for encrypted storage.
DES is a block cipher designed by IBM with assistance from the NSA in
the 1970s [57]. DES was the first
encryption algorithm that was published as a standard by NIST with
enough details to be implemented in software. DES uses a 56-bit key,
a 64-bit block size, and can be implemented efficiently in hardware.
DES is no longer considered to be secure. There are several more
secure variants of DES, most commonly 3DES [40]. 3DES uses
three separate DES encryptions with three different keys, increasing
the total key length to 168 bits. 3DES is considered secure for
government communications. DESX is a variant designed by RSA Data
Security that uses a second 64-bit key for
whitening (obscuring) the data before the first round and after the
last round of DES proper, thereby reducing its vulnerability to
brute-force attacks, as well as differential and linear cryptanalysis
[57].
Blowfish is a block cipher designed by Bruce Schneier with a 64-bit
block size and key sizes up to 448 bits
[57]. Blowfish had four design criteria:
speed, compact memory usage, simple operations, and variable security.
Blowfish works best when the key does not change often, as is the case
with file encryption, because the key setup routines require 521
iterations of Blowfish encryption. Blowfish is widely used for file
encryption.
2.6.3 AES (Rijndael)
AES is the successor to DES, selected by a public competition. Though
all of the six finalists were judged to be sufficiently secure for
AES, the final choice for AES was Rijndael based on the composite of
the three selection criteria (security, cost, and algorithm
characteristics) [41].
Since AES has been blessed by the US government and government
purchases will require AES encryption, it is likely that AES will
become more popular.
Rijndael is a block cipher based on the Square cipher that uses
S-boxes (substitution), shifting, and XOR to encrypt 128-bit blocks of
data. Rijndael supports 128, 192, and 256 bit keys.
2.6.4 Tweakable Ciphers
Tweakable block ciphers are new cipher mode (other cipher modes
include electronic codebook (ECB), cipher block chaining (CBC), and cipher
feedback (CFB)) [22]. Tweakable block ciphers
operate on large block sizes (e.g., 512-bytes) and are ideal for
sector level-encryption. The IEEE Security in Storage Working Group
is planning on using the AES encrypt-mix-encrypt (EME) cipher mode for
their project 1619 "Standard Architecture for Encrypted Shared
Storage Media."
As can be seen in Figure 2.2, encrypt-mix-encrypt
essentially divides the sector into encryption-block-size units
(P1, P2, ..., Pn), encrypts each one, mixes it with the result
of all the first round encryptions, and then encrypts the result.
Specifically, each Pi is encrypted once with AES, and then all the
results are exclusive-ored to create M. Tweakable cipher modes do
not use an IV, but rather use a tweak T (T is not directly shown
in the figure, but is a component of M). M is then calculated as
M XOR T. The result from the previous encryptions are
exclusive-ored with M, and then encrypted with AES again. Each
block is additionally exclusive-ored with iL (a constant derived
from EK(0)), before the first encryption round and after the last
encryption round. In sum, Ci = iL XOR EK(EK(iL XOR Pi) XOR M), where M = EK(L XOR P1) XOR ... EK(nL XOR Pn) XOR T.
Unlike CBC, tweakable ciphers have very large error propagation.
Since each output block includes the tweak (presumably based on the
sector) and random information from the first encryption round, small
modifications are propagated throughout the sector.
If there are any modifications to the sector, then they will randomly
affect each bit of the sector. The large error propagation has two
advantages: (1) even a small change to data is more likely to be
noticed, and (2) it is not susceptible to CBC cut-and-paste attacks.
EME ciphers are also more suited to hardware acceleration than
standard CBC mode. In CBC mode to encrypt the i-th data block, the
result from the i-1-th block is required, so to encrypt n blocks,
there is a delay of n units. However, in EME mode only one
synchronization point is needed (to compute M) and only two
encryption delays are required (one for the first round and one for
the second round).
Figure 2.2: L = EK(O) and M = (PPP1 XOR ... PPPn) XOR T, where T is the tweak. Figure taken from Halevi and Rogaway [22].
Chapter 3
Encryption File System Performance Comparison
To compare the performance of cryptographic systems we chose one
system from each category in Section 2, because we
were interested in evaluating properties of techniques, not specific
systems. We chose benchmarks that measure file system operations, raw
I/O operations, and a simulated user workload. Throughout the
comparisons we ran multi-programmed tests to compare increasingly
parallel workloads and scalability.
We did not benchmark an encryption application, because other programs
can not transparently access encrypted data.
As representatives from each category we chose Cryptoloop, EFS, CFS,
and NCryptfs.
We chose Cryptoloop, EFS, and CFS because they are widely used, and
up-to-date. Cryptoloop can be run on top of raw devices and normal
files, which makes it comparable to a wider range of block-based
systems than a block-based system that uses only files or only block
devices. We chose NCryptfs over Cryptfs because NCryptfs is more
secure.
We also tried to choose systems that run on a single operating system,
so that operating system effects would be consistent. We used Linux
for most systems, but for disk-based file systems we chose Windows.
There was no suitable and widely-used disk-based solution for Linux,
large part because block-based systems are generally used on Linux.
From previous studies, we also knew that TCFS and BestCrypt had
performance problems and we therefore omitted them
[69].
We chose workloads that stressed file system and I/O operations,
particularly when there are multiple users. We did not use a compile
benchmark or other similar workloads, because they do not effectively
measure file system performance under heavy loads [65].
In Section 3.1 we describe our experimental setup.
In Section 3.2 we report on PostMark, a benchmark that
exercises file system meta-data operations such as lookup, create,
delete, and append.
In Section 3.3 we report on PGMeter, a benchmark that
exercises raw I/O throughput.
In Section 3.4 we report on AIM Suite VII, a benchmark
that simulates large multiuser workloads.
Finally, in Section 3.5 we report other interesting
results.
3.1 Experimental Setup
To provide a basis for comparison we also perform benchmarks on Ext2
and NTFS. Ext2 is the baseline for Cryptoloop, CFS, and NCryptfs.
NTFS is the baseline for EFS.
We chose Ext2 rather than other Linux file systems because it is
widely used and well-tested. We chose Ext2 rather than the Ext3
journaling file system, because the loopback device's interaction with
Ext3 has the effect of disabling journaling. For performance reasons,
the default journaling mode of Ext3 does not journal data, but rather
only journals meta-data. When a loopback device is used with a
backing store in an Ext3 file, the Ext3 file system contained inside
the file does journal meta-data, but it writes the journal to the
lower-level Ext3 file as data, which is not journaled.
Additionally, journaling file systems create more complicated I/O
effects by writing to the journal as well as normal file system data.
We used the following configurations:
- A vanilla Ext2 file system.
- A loopback device using a raw partition as a backing store.
Ext2 is used inside the loop device. We refer to this
configuration as LOOPDEV.
- A loopback device using a preallocated backing store. Both
the underlying file system and the file system contained
within the loop device are Ext2. We refer to this
configuration as LOOPDD.
- CFS using an Ext2 file system as a backing store.
- A vanilla NTFS file system.
- An encrypted folder within an NTFS file system (EFS).
- NCryptfs stacked on top of an Ext2 file system.
3.1.1 System Setup
For Cryptoloop and NCryptfs we used four ciphers: the Null (identity)
transformation to demonstrate the overhead of the technique without
cryptography; Blowfish with a 128-bit key to demonstrate
overhead with a cipher commonly used in file systems; AES
with a 128-bit key because AES is the successor to DES
[12]; and 3DES because it is an often-used cipher
and it is the only cipher that all of the tested systems supported.
We chose to use 128-bit keys for Blowfish and AES, because that is the
default key size for many systems. For CFS we used Null, Blowfish, and
3DES (we did not use AES because CFS only supports 64-bit ciphers).
For EFS we used only 3DES, since the only other available cipher is
DESX.
| Feature | LOOPDEV | LOOPDD | EFS | CFS | NCryptfs |
1 | Category | Block Based | Block Based | Disk FS | NFS | Stackable FS |
2 | Location | Kernel | Kernel | Hybrid | User Space | Kernel |
3 | Buffering | Single | Double | Single | Double | Double |
4 | Encryption unit | 512B | 512B | 512B | 8B | 4KB/16KB |
5 | Encryption mode | CBC | CBC | CBC (?) | OFB+ECB | CTS/CFB |
6 | Write Mode | Sync,Async | Async Only | Sync,Async | Async Only | Async only |
| | | | | | Write-Through |
Table 3.1: Peformance related features.
In Table 3.1 we summarize various system features that
affect performance.
1. Category LOOPDEV and LOOPDD
use a block-based approach. EFS is implemented as an
extension to the NTFS disk-based file system. CFS is
implemented as a user-space NFS server. NCryptfs is a
stackable file system.
2. Location LOOPDEV, LOOPDD, and NCryptfs
are implemented in the kernel. EFS uses a hybrid
approach, relying on user-space DLLs for some cryptographic
functions. CFS is implemented in user space.
3. Buffering LOOPDEV and EFS keep only one
copy of the data in memory. LOOPDD, CFS, and
NCryptfs have both encrypted and decrypted data in memory.
Double buffering effectively cuts the buffer cache size in half.
4. Encryption unit LOOPDEV, LOOPDD, and
EFS use a disk block as their unit of encryption. This
defaults to 512 bytes for our tested systems. CFS uses the
cipher block size as its encryption unit and only supports
ciphers with 64-bit blocks. NCryptfs uses the PAGE_SIZE as
the unit of encryption: on the i386 this is 4KB and on the
Itanium this defaults to 16KB.
5. Encryption mode LOOPDEV and LOOPDD use
CBC encryption. The public literature does not state what
mode of encryption EFS uses, though it is most probably CBC
mode because: (1) the Microsoft CryptoAPI uses CBC mode by
default, and (2) it has a fixed block size that is accommodating
to CBC. NCryptfs uses cipher text stealing (CTS) to encrypt data
of arbitrary length to data of the same length.
CFS does not use standard cipher modes, but rather a hybrid of
ECB and OFB.
Chaining modes (e.g., CBC) do not allow direct random access to
files, because to read or write from the middle of a file all
the previous data must be decrypted or encrypted first.
However, ECB mode permits a cryptanalyst to do structural
analysis.
CFS solves this by doing the following: when an attach is
created, half a megabyte of pseudo-random data is generated
using OFB mode and written to a mask file. Before data
is written to a data file, it is XORed with the contents of
the mask file at the same offset as the data (modulo the size
of the mask file), then encrypted with ECB mode. To read data
this process is simply reversed.
This method is used to
allow uniform access time to any portion of the file while
preventing structural analysis.
NCryptfs and Cryptoloop achieve the same effect using initialization
vectors (IVs) and CBC on pages and blocks rather than the whole file.
For Cryptoloop, CFS, and NCryptfs we adapted the Blowfish,
AES, and 3DES implementations from OpenSSL 0.9.7b to minimize
effects of different cipher implementations [46].
Cryptoloop uses CBC mode encryption for all operations.
NCryptfs uses CTS to ensure that an arbitrary length buffer
can be encrypted to a buffer of the same length
[57]. NCryptfs uses CTS because
size changing algorithms add complexity and overhead to
stackable file systems [71]. CTS mode
differs from CBC mode only for the last two blocks of data.
For buffers that are shorter than the block size of the
cipher, NCryptfs uses CFB, since CTS requires at least one
full block of data. We did not change the mode of encryption
that CFS uses.
6. Write Mode LOOPDD does not use a
synchronous file as its backing store, therefore all writes
become asynchronous. CFS uses NFSv2 where all writes
on the server must be synchronous, but CFS violates the
specification by opening all files asynchronously.
Due to VFS calling conventions, NCryptfs does not
cause the lower-level file system to use write synchronously.
Asynchronous writes improve performance, but at the expense of
reliability. NCryptfs uses a write-through strategy: whenever
a write system call is issued, NCryptfs passes it to
the lower-level file system. The lower-level file system may
not do any I/O, but NCryptfs still encrypts data.
We ran our benchmarks on two machines: the first represents a
workstation or a small work group file server, and the second represents
a mid-range file server.
The workstation machine is a 1.7Ghz Pentium IV with 512MB of RAM. In
this configuration all experiments took place on a 20GB 7200 RPM
Western Digital Caviar IDE disk. For Cryptoloop, CFS, and NCryptfs we
used Red Hat Linux 9 with a vanilla Linux 2.4.21 kernel. For EFS we
used Windows XP (Service pack 1) with high encryption enabled for EFS.
Our file server machine is a 2 CPU 900Mhz Itanium 2 McKinley
(hereafter we refer to this CPU as an Itanium) with 8GB of RAM running Red
Hat Linux 2.1 Advanced Server with a vanilla SMP Linux 2.4.21 kernel.
All experiments took place on a Seagate 73GB 10,000 RPM Cheetah
Ultra160 SCSI disk. Only Ext2, Cryptoloop, and NCryptfs were tested
on this configuration. We did not test CFS because its file handle
and encryption code are not 64-bit safe. We did not test NTFS or EFS
because 64-bit Windows is not yet commonly used on the Itanium
platform.
All tests were performed on a cold cache, achieved by unmounting and
remounting the file systems between iterations. The tests were
located on a dedicated partition in the outer sectors of the disk to
minimize ZCAV and other I/O effects [14].
For multi-process tests we report the elapsed time as the maximum
elapsed time of all processes, which shows how long it takes to
actually get the allotted work completed. We report the system time
as the sum of the system times of each process and kernel thread
involved in the test. For LOOPDD we add the CPU time of the
kernel thread used by the loopback device to perform encryption. For
LOOPDEV we add in the CPU time used by
kupdated, because encryption takes place when syncing dirty
buffers. Finally, for CFS we add the user and system time used by
cfsd, because this is CPU time used on behalf of the process.
As expected there were no significant variations in the user time of
the benchmark tools, because no changes took place in the user
code. We do not report user times for these tests because we do not
vary the amount of work done in the user process.
We ran all tests several times, and we report instances where our
computed standard deviations were more than 5% of the mean.
Throughout this paper, if two values are within 5%, we do not
consider that a significant difference.
3.2 PostMark
PostMark focuses on stressing the file system by performing a series
of file system operations such as directory lookups, creations,
appends, and deletions on small files. A large number of small files
is common in electronic mail and news servers where multiple users are
randomly modifying small files. We configured PostMark to create
20,000 files and perform 200,000 transactions in 200 subdirectories.
To simulate many concurrent users, we ran each configuration with 1,
2, 4, 8, 16, and 32 concurrent PostMark processes. The total number
of transactions, initial files, and subdirectories was divided evenly
among each process. We chose the above parameters for the number of
files and transactions as they are typically used and recommended for
file system benchmarks [29,66]. We
used many subdirectories for each process, so that the work could be
divided without causing the number of entries in each directory to
affect the results (Ext2 uses a linear directory structure). We ran
each test at least ten times.
Through this test we demonstrate the overhead of file system
operations for each system. First we discuss the results on our
workstation configuration in Section 3.2.1. Next, we
discuss the results on our file server configuration in Section
3.2.2.
3.2.1 Workstation Results
Ext2
Figure 3.1 shows elapsed time results for Ext2.
For a single process, Ext2 ran for 121.5 seconds, used 12.2 seconds of
system time, and average CPU utilization was 32.1%. When a second
process was added, elapsed time dropped to 37.1 seconds, less than
half of the original time. The change in system time was negligible
at 12.5 seconds. System time remaining relatively constant is to be
expected because the total amount of work remains fixed. The average
CPU utilization was 72.1%. For four processes the elapsed time was
17.4 seconds, system time was 9.9 seconds, and CPU utilization was
79.4%. After this point the improvement levels off as the CPU and
disk became saturated with requests.
Figure 3.1: PostMark: Ext2 elapsed time for the workstation
LOOPDEV
Figure 3.2(a) shows elapsed time results for
LOOPDEV, which follows the same general trend as Ext2. The
single process test is dominated by I/O and subsequent tests improve
substantially, until the CPU is saturated. A single process took
126.5 seconds for Null, 106.7 seconds for Blowfish, 111.8 seconds for
AES, and 136.3 seconds for 3DES.
The overhead over Ext2 is 4.2% for Null, -12.2% for Blowfish,
-8.0% for AES, and 12.25% for 3DES.
The fact that Blowfish and AES are faster than Ext2 is an artifact of
the disks we used. When we ran the experiment on
a ramdisk, a SCSI disk, or a slower IDE disk, the results were as
expected. Ext2 was fastest, followed by Null, Blowfish, AES, and
3DES.
The system times, shown in Figure 3.2(b), were
12.4, 13.5, 14.0, and 27.4 seconds for Null, Blowfish, AES and 3DES,
respectively. The average CPU utilization was 31.6%, 38.3%, 36.6%,
40.0% for Null, Blowfish, AES and 3DES, respectively. When there
were eight concurrent processes, the elapsed times were 17.3, 18.4,
18.8, and 22.8 seconds, respectively. The overheads were
1.0-32.2% for eight processes. The average CPU utilization
ranged from 64.1-80.1%. The decline in system time was unexpected,
and is due to the decreased elapsed time. Since dirty buffers have
a shorter lifetime when elapsed time decreases, kupdated does
not flush the short-lived buffers, thereby reducing the amount of
system time spent during the test.
[Elapsed time]
[System time]
Figure 3.2: PostMark: LOOPDEV for the workstation
The results fit the pattern established by Ext2 in that once the CPU
becomes saturated, the elapsed time remains constant. Again, the
largest benefit is seen when going from one to two processes.
Encryption does not have a large user visible impact, even for this
intense workload.
LOOPDD
Figure 3.3 shows the elapsed time results for the
LOOPDD configuration. The elapsed times for a single process
are 41.4 seconds for Null, 44.5 for Blowfish, 45.7 for AES, and 73.9
for 3DES. For eight processes, the elapsed times decrease to 23.1,
23.5, 24.5, and 50.39 seconds for Null, Blowfish, AES, and 3DES,
respectively.
Figure 3.3: Note: Null, Blowfish, and AES additionally have points for 1-8 in one process increments rather than exponentially increasing processes.
With LOOPDD we noticed an anomaly at four processes. We have
repeated this test over 50 times and the standard deviation remains
high at 40% of the mean for Null, AES, and Blowfish. There is also
an inversion between the elapsed time and the cipher speed. The Null
cipher is the slowest, followed by Blowfish, and then AES. 3DES is
not affected by this anomaly.
We have investigated this anomaly in several ways. We know this to be
an I/O effect, because the system time remains constant and when the
test is run with a ram disk, the anomaly disappears. We also ran the
test for the surrounding points at three, five, six, and seven
concurrent processes. For Null there were no additional anomalies,
but for Blowfish and AES the results for 4-6 process were erratic and
standard deviations ranged from 25-67%.
We have determined the anomaly's cause to be an interaction with the Linux
buffer flushing daemon, bdflush. Flushing dirty buffers in Linux is
controlled by three parameters: nfract, nfract_stop, and
nfract_sync. Each parameter is a percentage of the total number of
buffers available on the system. When a buffer is marked dirty, the
system checks if the number of dirty buffers exceeds nfract% (by
default 30%) of the total number of buffers. If so,
bdflush is woken up and begins to sync buffers until only
nfract_stop% of the system buffers are dirty (by default 20%).
After waking up bdflush, the kernel checks if more than
nfract_sync% of the total buffers are dirty (by default 60%). If
so, then the process synchronously flushes NRSYNC buffers
(hard coded to 32) before returning control to the process. The
nfract_sync is designed to throttle heavy writers and ensure that
enough clean buffers are available.
We changed the nfract_sync parameter to 90% and reran this test.
Figure 3.4 shows the results when using
nfract_sync=90% and the anomaly is gone.
Since the Null processes are writing to the disk so quickly, they
end up causing the number of dirty buffers to go over the
nfract_sync threshold. The four process test is very close to this
threshold, which accounts for the high standard deviation.
When more CPU is used, either through more processes or slower
ciphers, the rate of writes is slowed, and this this effect is not
encountered.
We have confirmed our analysis by increasing the RAM on the machine
from 512MB to 1024MB, and again the elapsed time anomaly disappeared.
Figure 3.4: Note: 3DES is not included because it does not display this anomaly.
The other major difference between LOOPDD and
LOOPDEV is that LOOPDD uses more system time. This
is for two reasons. First, LOOPDD traverses the file system
code twice, once for the test file system and once for the file system
containing the backing store. Second, LOOPDD effectively
cuts the buffer and page caches in half by double buffering. Cutting
the buffer cache in half means that fewer cached cleartext pages are
available so more encryption operations must take place.
The system time used for LOOPDD is also relatively constant,
regardless of how many processes are used.
We instrumented a CryptoAPI cipher to count the number of bytes
encrypted, and determined that unlike LOOPDEV, the number of
encryptions and decryptions does not significantly change. The
LOOPDEV system marks the buffers dirty and issues an I/O
request to write that buffer. If another write comes through before
the I/O is completed, then the writes are coalesced into a single I/O
operation. When LOOPDD writes a buffer it adds the buffer to
the end of a queue for the loop thread to write. If the same buffer
is written twice, the buffer is added to the queue twice, and hence
encrypted twice. This prevents searching through the queue, and since
the lower-level file system may in fact coalesce the writes, this does
not have a large impact on elapsed time.
The results show that LOOPDD systems have several complex
interactions with many components of the system that are difficult to
explain or predict. When maximal performance and predictability is a
consideration, LOOPDEV should be used instead of
LOOPDD.
CFS
Figure 3.5 shows CFS elapsed times, which are
relatively constant no matter how many processes are running. Since
CFS is a single threaded NFS server, this result was expected.
System time also remained constant for each test: 146.7-165.3 seconds
for Null, 298.9-309.4 seconds for Blowfish, and 505.7-527.8 seconds for
3DES.
There is a decrease in elapsed time when there are eight concurrent
processes (27.0% for Null, 14.1% for Blowfish, and 7.8% for 3DES),
but the results return to their normal progression for 16 processes.
The dip at eight processes occurs because I/O time decreases. At this
point the request stream to our particular disk optimally interleaves
with CPU usage. System time remains the same. When this test is run
inside of a ram disk or on different hardware, this anomaly
disappears.
Figure 3.5: PostMark: CFS elapsed time for the workstation
We conclude that both the user-space and single-threaded architecture
are bottlenecks for CFS. The single threaded architecture prevents
CFS from making use of parallelism, while the user-space architecture
causes CFS to consume more system time for data copies to and from
user space and through the network stack.
[Elapsed time]
[System time]
Figure 3.6: PostMark: NTFS on the workstation.
NTFS
Figure 3.6(a) shows that NTFS performs significantly
worse than Ext2/3 for the PostMark benchmark. The elapsed time for NTFS
was relatively constant regardless of the number of processes, ranging
from 28.9-30.2 minutes. Katcher reported that NTFS performs poorly for
this workload when there are many concurrent files
[29]. Unlike Ext2, NTFS is a journaling file
system. To compare NTFS with a similar file system we ran this
benchmark for Ext3 with journaling enabled for both meta-data and
data. Ext2 took 2.1 minutes for one process, and Ext3 took 20.0
minutes. We hypothesize that the journaling behavior of NTFS
negatively impacts its performance for PostMark operations.
NTFS has many more synchronous writes than Ext3, and all writes have
three phases that must be synchronous. First, changes to the
meta-data are written to allow a read to check for corruption or
crashes. Second, the actual data is written. Third, the metadata is
fixed, again with a synchronous write. Between the first and last
step, the metadata may not be read or written to, because it is in
effect invalid.
Furthermore, the on-disk layout of NTFS is more prone to seeking than
that of Ext2 (Ext3 has an identical layout). NTFS stores most
metadata information in the master file table (MFT), which is
placed in the first 12% of the partition. Ext2 has group
descriptors, block bitmaps, inode bitmaps, and inode tables for each
cylinder group. This means that a file's meta-data is physically
closer to its data in Ext2 than in NTFS.
When an encrypted folder is used for a single process, elapsed time
increases to 57.2 minutes, a 98% overhead over NTFS. The right of
Figure 3.6(b) shows that for a single process, system
time increases to 335.2 seconds, a 82.9% overhead over NTFS. We
have observed that unlike NTFS, EFS is able to benefit from
parallelism when multiple processes are used under this load.
When there are eight concurrent processes, the elapsed time
decreases to 43.5 minutes, and the system time increases to
386.5 seconds. No additional throughput is achieved after eight
processes. We conclude that NTFS, and hence EFS, is not suitable
for busy workloads with a large number of concurrent files.
NCryptfs
Figure 3.7 shows that for a single process running
under NCryptfs, the elapsed times were 136.2, 150.0, 156.5, and 368.9
seconds for Null, Blowfish, AES, and 3DES, respectively. System times
were 22.2, 44.0, 54.3, and 287.5 seconds for Null, Blowfish, AES, and
3DES, respectively.
This is higher than for LOOPDD and LOOPDEV because
NCryptfs uses write-through, so all writes cause an encryption
operation to take place. The system time is lower than in CFS because
CFS must copy data to and from user-space, and through the
network stack.
Average CPU utilization was 36.4% for Null, 47.5% for Blowfish,
52.2% for AES, and 84.9% for 3DES. For eight processes, elapsed
time was 27.0, 48.2, 56.2, and 281.5 seconds for Null, Blowfish, AES,
and 3DES, respectively. CPU utilization was 90.2%, 96.3%, 98.0%,
and 99.3% for Null, Blowfish, AES, and 3DES, respectively. This high
average CPU utilization indicates that CPU is the bottleneck,
preventing greater throughput from being achieved.
Figure 3.7: PostMark: NCryptfs Workstation elapsed time
Ciphers
As expected throughout these tests, 3DES introduces significantly more
overhead than AES or Blowfish. Blowfish was designed with speed in
mind, and a requirement for AES was that it would be faster than 3DES.
In this test AES and Blowfish perform similarly.
We chose to use Blowfish for further benchmarks because it is often
used for file system cryptography and has properties that are useful
for cryptographic file systems.
First, Blowfish supports long key lengths, up to 448-bits. This is
useful for long-term storage because it is necessary to protect
against future attacks.
Second, Blowfish generates tables to speed the actual encryption
operation. Key setup is an expensive operation, which takes 4168
bytes of memory and requires 521 iterations of the Blowfish algorithm
[57]. Since key setup is done infrequently,
this does not place undue burden on the user, but makes it somewhat
more difficult to mount a brute-force attack.
3.2.2 File Server Results
Single CPU Itanium
The left of Figure 3.8(a) shows the results when we
ran the PostMark benchmark on our Itanium file server configuration
with one CPU enabled (we used the same SMP kernel as we did with two
CPUS). The trend is similar to that seen for the workstation.
For Ext2, the elapsed time for a single process was 79.9 seconds, and
the system time was 11.7 seconds.
For LOOPDEV, the elapsed time is within 1% of Ext2 for all
tests while for LOOPDD the elapsed times decreased by 31%
for all tests compared to Ext2.
For NCryptfs the elapsed time was 102.4 seconds for Null and 181.5
seconds for Blowfish. This entails a 24% overhead for Null and 127%
overhead for Blowfish over Ext2.
Of note is that NCryptfs uses significantly more CPU time than on the
i386. The increase in CPU time is caused by the combination of two
factors. First, the Blowfish implementation we used (from OpenSSL
0.9.7b) only encrypts at 31.5MB/s on this machine as opposed to
52.6MB/s on the i386. Second, the i386 architecture uses a 4KB page
size by default, whereas the Itanium architecture supports page sizes
from 4KB-4GB. The Linux kernel uses a 16KB page size by default.
Since NCryptfs encodes data in units of one page, any time a page is
updated, NCryptfs must re-encrypt more data. When using a Linux
kernel recompiled with a 4KB page size on the Itanium, the system time
used by NCryptfs with Blowfish drops by 37.5% to 55.6 seconds. With
a 4KB page size, the system time that Blowfish uses over Null on the
Itanium is roughly the additional time that the i386 uses, scaled by
the encryption speed.
Since this test is mostly contained in main memory, NCryptfs also
performs significantly more work than does the loopback device in this
test. NCryptfs uses write-through to the lower-level file system, so
each write operation results in an encryption. The loopback device
does not encrypt or decrypt data for operations that are served out of
the cache.
[One CPU]
[Two CPUs]
Figure 3.8: PostMark: File server elapsed time.
We conclude that the general trends for the Itanium architecture are
the same as for the i386 architecture. The i386 has had years of
investment in optimizing compilers and optimized code, whereas the
Itanium being a new architecture has not yet developed an optimized
codebase.
Dual CPU Itanium
The right of Figure 3.8(b) shows the results when a second CPU is
added to the file server. As expected, the elapsed times for a
single process remained unchanged.
Again, the bottleneck was the CPU in this experiment, and the
additional CPU resources proved to be of benefit. As the number of
processes increases past one process, the system time increased
slightly for all systems because of the added overhead of locking and
synchronization of shared directories and other file-system data
structures. However, because the increased CPU time was spread across
the two CPUs, elapsed time decreased significantly. The decrease in
the elapsed times for Ext2 ranged from 27-30% for eight or more
concurrently running processes. LOOPDD had similar behavior
for both Blowfish and Null ciphers. For
LOOPDEV the decrease ranged from 28-37% for both Blowfish
and Null ciphers. The elapsed times for NCryptfs changed to 53% of
their value (compared to a single CPU) for Blowfish while the decrease
for the Null cipher was 23%.
We conclude that these file systems scale as well as Ext2, and when
encryption is added, the benefit is even more significant.
3.3 PGMeter
PenguinoMeter is a file-I/O benchmark with a workload specification
patterned after that of the IOMeter benchmark available from Intel
[1,7]. PGMeter measures the data transfer rate to and from a
single file.
We ran PGMeter with the fileserver.icf workload
distributed with PGMeter and IOMeter, which is a mixture of 512B-64KB
transfers of which 80% are read requests and 20% are write requests.
Each operation begins at a randomly selected point in the file.
We ran this workload for 1-256 outstanding I/O requests,
increasing the number by a factor of 4 on each subsequent run.
Each test starts with a 30 second ramp-up period in order to avoid
transient startup effects, and then performs operations for 10
minutes. Every 30 seconds during the test, PGMeter reports the number
of I/O operations performed and the number of megabytes of data
transferred per second. We ran each test three times, and observed
stable results both across and within tests. Since the amount of data
transferred is a multiple of the I/O operations, we do not include this
result.
For the workstation configuration the data file size was 1GB, and for
the file server it was 16GB. This is twice the amount of memory on the
machine, in order to measure I/O performance and not performance when
reading or writing to the cache.
On Windows we used version 1.3.22-1 of the Cygwin environment to build
and run PGMeter. When given the same specification, PGMeter produces
similar workloads as IOMeter [7]. A major limitation with
PGMeter and Windows is that Cygwin does not support more than 63
concurrent threads, so a large number of outstanding operations
can not be generated. We used IOMeter on Windows with the same workload as
PGMeter on Linux. This allowed to compare NTFS and EFS for an
increasing number of concurrent operations. Though IOMeter and
PGMeter are quite similar, conclusions should not be drawn between
NTFS and EFS vs. their Linux counterparts.
[Workstation]
[File server]
Figure 3.9: The workstation
is on the left, and the file server is on the right.
Figure 3.9(a) shows the operations per second (ops/sec)
for PGMeter and IOMeter.
As in previous tests we adopted Ext2 as the baseline for the Linux
systems. The average I/O ops/sec for Ext2 started at 143 ops/sec for
one outstanding operation (each outstanding operation uses a thread on
Linux) and dropped to 136.3 ops/sec for 256 threads.
The ops/sec for LOOPDEV with Null ranged from 144 ops/sec for
one thread to 135.7 ops/sec for 256 threads. When using Blowfish,
ops/sec ranged from 140-135 ops/sec.
LOOPDD dropped to 107 ops/sec for one thread and 104 ops/sec
for 256 threads. This is because LOOPDD must pass through
the file system hierarchy twice. The results for Blowfish were
identical, indicating that the encryption overhead is not significant.
IOMeter with the file server workload under NTFS showed a performance
improvement when the number of outstanding operations was increased.
For one outstanding operation, 83.7 ops/sec were performed, increasing
to 100 ops/sec for 256 outstanding operations. EFS followed suite
increasing from 78.7 to 91.7 ops/sec. From this we conclude that even
though NTFS performs poorly with many concurrent files, it is able to
effectively interleave CPU and disk resources when there is only one
open file.
As on the other Linux-based systems, CFS showed the same pattern of a
decrease in the ops/sec as the number of threads increased. The range
for Null was 107.6 ops/sec for one thread to 92.4 ops/sec for 256
threads. For CFS with Blowfish, the number of ops/sec ranged from
89.3 for one thread to 80 for 256 threads.
NCryptfs performed better than LOOPDD and CFS for a single
thread, achieving 117 ops/per second for Null and 114 for Blowfish.
However, for multiple threads, NCryptfs with Null quickly dropped to 81
ops/sec for 4 threads and 52.2 ops/sec for 16 threads where it began
to stabilize. NCryptfs with Blowfish followed the same pattern,
stabilizing at 52.1 ops/sec for 16 threads. The reason that NCryptfs
performed poorly for multiple threads is that it must down the inode
semaphore for each write operation, so they become serialized and
there is significant contention. This behavior was not exhibited
during PostMark since each process worked on a disjoint set of files.
Figure 3.9(b) shows the ops/sec achieved on our Itanium
fileserver machine. On this machine, we observed an improvement in
the ops/sec with an increase in the number of threads due to the
interleaving of CPU bound and I/O bound tasks. The number of ops/sec
for Ext2 ranged from 244 for one thread to 17,404 for 256 threads.
LOOPDEV with Null closely followed Ext2 with 242-17,314
ops/sec. LOOPDEV with Blowfish started off at 220 ops/sec
for one thread and reached 17,247 ops/sec for 256 threads.
LOOPDD performed fewer ops/sec for both Null and Blowfish,
because it had to travel through the file system stack twice.
Additionally, LOOPDD cuts the buffer cache in half so fewer
requests are served from memory. LOOPDD with Null performed
166-14,021 ops/sec. With Blowfish, the number of ops/sec ranged from
160-13,408.
NCryptfs with Null started at 193.3 ops/sec for one thread and
increased to 16,482 ops/sec for 256 threads. When using Blowfish,
NCryptfs only achieved 176-5,638 ops/sec, due to the computation
overhead of Blowfish combined with the write-through implementation,
and the larger 16KB default (PAGE_SIZE) unit of encryption.
From this benchmark we conclude that I/O intensive workloads suffer a
greater penalty than meta-data intensive workloads on cryptographic
file systems. There are several reasons for this: double buffering
cuts page caches in half, data must be copied through multiple file
systems, and there is increased lock contention. Additionally, the
increased unit of encryption begins to have a negative effect on the
systems. Though Blaze's hybrid OFB/ECB approach does not suffer from
increasing page or block sizes, its security not well studied.
3.4 AIM Suite VII
The AIM Multiuser Benchmark Suite VII (AIM7) is a multifaceted
system-level benchmark that gives an estimate of the overall system
throughput under an ever-increasing workload. AIM7 comes with
preconfigured standard workload mixes for multiuser environments.
An AIM7 run comprises of a series of sub-runs with the number of
tasks increasing in each sub-run. AIM7 creates one process
for each simulated operation load (task). Each sub-run waits for all
children to complete their share of operations. We
can specify the number of tasks to start with and the increment for
each subsequent subrun. The AIM7 run stops after it has reached the
crossover point that indicates the multitasking
operation load where the system's performance becomes unacceptable,
i.e., less than 1 job/minute/task. Each run takes over 12 hours and is
self-stabilizing, so we report the values from only a single run. In
our other trials have observed the results to be stable over multiple
runs.
AIM7 runs a total of 100 tests for each task, selecting the tests
based on weights defined by the workload configuration. We chose the
fileserver configuration that represents an environment with a heavy
concentration of file system operations and integer computations.
The file server configuration consists of 40% asynchronous file
operations (directory lookup, random read, copy, random writes, and
sequential writes), 58% miscelleneous tests that do not depend on
the underlying file system and 2.5% synchronous file operations
(random write, sequential write and copy).
AIM7 reports the total jobs/minute and jobs/minute/task for each
subrun. For a typical system, as the number of concurrently running
tasks increases, the jobs/minute increases to a peak value as idle CPU
time is used; thereafter it reduces due to software and hardware
limitations.
We ran AIM7 with one initial task and an increment of two tasks for
each subrun. AIM7 uses an adaptive timer to determine the
increment after the first eight subruns. After the invocation of the
adaptive timer the number of tasks depends on the recent rate of
change of throughput, but the adaptive timer often significantly
overshoots the crossover point [2]. AIM7 can also use
Newton's method to approach the crossover point more gradually. We
opted to use Newton's method.
Figure 3.10: Note: Peak jobs/minute is using the left bars and scale. Crossover is using the right bars and scale.
The results of AIM7 can be seen in Figure 3.10.
Ext2 served as a base line for all the tests. The peak jobs/minute on
Ext2 was 230 with 5 tasks and the crossover point was 112 tasks.
LOOPDEV with a Null cipher peaked at 229 jobs/minute with 5 tasks and
reached crossover at 108 tasks. With Blowfish, the peak jobs/minute
was 217 with 5 tasks and the crossover was at 114 tasks.
LOOPDD, NCryptfs, and CFS all achieved a higher peak jobs/minute and
crossover point than Ext2. This is because they do not respect
synchronous write requests. When run with only asynchronous writes,
Ext2 peaks at 2253 jobs/minute. LOOPDD peaked at 1897
jobs/minute with 46 tasks using Null; and 1255 jobs/minute with 40
tasks using Blowfish. The crossover point was 156 tasks for Null, and
157 tasks for Blowfish. This difference is not significant. NCryptfs
with Null peaked at 1405 jobs/minute with 34 tasks, and reached the
crossover at 139 tasks. With Blowfish, NCryptfs peaked at 263
jobs/minute with 23 tasks, and reached the crossover at 120 tasks.
When using Blowfish with NCryptfs, the write-through behavior causes
CPU utilization to increases and the integer computation portion of the AIM7
test is not able to achieve as high a throughput.
CFS with Null peaked at only 317 jobs/minute with 11 tasks, despite
the fact that it does not respect the synchronous flag. This is
because there is a significant amount of overhead incurred by
traversing the network stack and copying data to and from user space.
The crossover point was 29 tasks. When CFS is used with Blowfish, the
peak throughput is reduced to 77 jobs/minute with 9 tasks. The
crossover is reached at 28 tasks.
From these results we conclude that synchronous I/O may be a small
part of most workloads, but it has an overwhelming effect on the total
throughput. We also conclude that as workloads shift to an intensive
mix of I/O and CPU usage, encryption begins to affect throughput more
throughput. Our previous experience shows that less intense
workloads, such as compiles, have little user visible overhead
[69].
On the Itanium file servers, Ext2 reached a peak jobs/sec count of 188
for 93 tasks and reached crossover at 171 tasks. LOOPDEV
again closely mimicked the behavior of Ext2 with both Null and Blowfish
reaching a peak of 171 jobs/minute with 103 tasks for Null and 117
tasks for Blowfish. The crossover points were 166 and 165 for Null
and Blowfish, respectively. If only the asynchronous I/O portions are
executed, Ext2 has a peak throughput of 4524. As compilers for the
Itanium improve, the computational portions of this suite of tests should
also improve to exceed the throughput of the i386.
LOOPDD with Null and Blowfish showed the same trend as the
workstation machines. With Null, the peak jobs/min was 3315 with 48
tasks, and the crossover point 934 tasks. Blowfish peaked at 1613
jobs/min with 200 tasks, and the crossover point was 1049. Since
the Blowfish implementation is slower on the Itanium, the peak
jobs/min dropped by 51% when compared with Null. On the i386 the peak
jobs/min only dropped by 34%.
NCryptfs with Null peaked at 2365 jobs/min with 167 tasks and the
crossover point was 1114 tasks. With Blowfish, NCryptfs becomes
significantly slower, peaking at 132 jobs/min with 132 tasks and
reaching crossover at 133 tasks. This can again be attributed to the
interference with CPU-bound processes, and is only exacerbated by
compilers not yet optimizing the Blowfish implementation as well as on
the i386.
From this we conclude that even though the raw I/O performance is
significantly better on the Itanium, a mix of heavily compute and I/O
intensive workloads still suffer from the slower CPU. When using a
cryptographic file system with write-through this is only worsened.
We expect that as Itanium compilers improve, this problem will be less
pronounced.
3.5 Other Benchmarks
In this section we explain interesting results involving
configurations not previously discussed.
Key Size
A common assumption is that stronger security decreases performance.
A classic example of this is that if you use longer key lengths, then
encryption is more costly. We set out to quantify exactly how much it
would cost to increase your key length to the maximum allowed by our
ciphers. We used two variable key length ciphers: Blowfish and AES.
Cipher | Key Size (bits) | Speed MB/s |
AES | 128 | 27.5 |
AES | 192 | 24.4 |
AES | 256 | 22.0 |
Blowfish | Any | 52.6 |
3DES | 168 | 10.4 |
Null | None | 694.7 |
Table 3.2: Workstation raw encryption speeds for AES, Blowfish and 3DES.
To encrypt data, most block ciphers repeat a simple function several
times; each time the primitive function is iterated is called a
round. Blowfish has 16 rounds no matter what key size you
choose; only the key expansion changes, which occurs only on
initialization. This means that encryption time remains constant
without consideration to whether a 32 or 448 bit key is chosen. Our
experimental results confirmed this. No significant difference was
recorded for raw encryption speeds for NCryptfs running the
PostMark benchmark. On the other hand, AES has 10, 12, or 14 rounds
depending on the key size (128, 192, and 256 bits, respectively).
Table 3.2 shows raw encryption speeds on our workstation
configuration. There is a 24.7% difference between the fastest and
slowest AES key length, but when benchmarked in the context of file
systems, this translates into a mere 1.3% difference for NCryptfs
running PostMark. This difference is within the margin of error for
these tests (here, standard deviations were 1-2% of the mean).
The overhead of encryption is largely masked by I/O and other
components of the system time, such as the VFS code. Since the key
size plays a small role in the file system throughput, it is wise to
use as large a key size as possible. This is made only more important
by the persistent nature of file systems, where there is often lots of
data available to a cryptanalyst - some of which may be predictable,
e.g., partition tables [55]. Since file systems
are designed for long-term storage, it is important that data is
protected not only against adversaries of today, but also of the
future.
Sparse Loopback Devices
Throughout our previous tests, LOOPDD used a preallocated
file that filled the test partition to reduce I/O effects. It is
often the case that an encrypted volume is only a small fraction of
the disk. This leads to interesting results with respect to I/O.
Ext2 attempts to put blocks from the same file into a single cylinder
group; and spread directories evenly across cylinder groups with the
goal of clustering related files [42].
Using a preallocated file as large as the partition does not
drastically affect the Ext2 allocation policy. However, if the
preallocated file is smaller than the partition, it is clustered into
as few cylinder groups as possible, thereby reducing the amount of
seeking required. Using a sparse file as the backing store results in
an even more optimal allocation policy than the small file, since
holes in the upper-level file system are not allocated.
We ran this test on our workstation with a 10GB Seagate 5400 RPM IDE
hard drive. We used a slower disk than in previous tests to
accentuate the differences between these configurations. Using the
entire drive formatted with Ext2, PostMark took 551 seconds and used
12.2 seconds of system time. When using a 500MB LOOPDD file,
Null mode took 79.6 seconds, and used 27.1 seconds of system time.
Using Cryptoloop with a sparse backing store took 51.2 seconds and
used 27.2 seconds of system time.
From this test we conclude that although using a loop device increases
system overhead, the effects that it has on layout policy can be
beneficial. On the other hand, the fact that LOOPDD can so
markedly affect the layout policies of the file system may have
negative impacts for some workloads. One advantage of systems like
LOOPDEV is that they will not affect the layout decisions
made by the upper level file system.
Chapter 4
Snapshotting and Versioning Systems Survey
In this section we examine snapshotting and versioning.
We define snapshotting as the act of creating a consistent view of an
entire file system, and versioning as making historical backup copies of
individual files.
Like cryptographic file systems, snapshotting and versioning systems
can operate at several levels: at the block-level, as a disk-based
file system, as a stackable file system, as a user-level library, or
at the application level.
4.1 Block-Based Systems
4.1.1 FreeBSD Soft Updates
FreeBSD Soft Updates use snapshots to ensure file system consistency
[36].
In FreeBSD FFS, a technique called Soft Updates is used to ensure that
on-disk data structures are always consistent. Soft Updates track
pointer dependencies within the file system, and ensure that the only
possible on-disk inconsistency is orphaned resources (i.e., resources
that are allocated, but have no pointer to them). Soft Updates allow
the machine to restart without the need to immediately run
fsck. However, it is useful to run fsck in the
background to reclaim the orphaned blocks and inodes. fsck
takes a snapshot, performs checks for orphaned resources, and then
informs the OS of the orphaned resources via a new system call, which
reclaims the orphaned resources.
In FreeBSD, snapshots are managed by the file system, but logically
occur at the block-level. To take a snapshot, the file system writes
all pending data, and creates a new snapshot inode. Each time a
disk-block is updated, the file system checks if that block is not
already in the snapshot and performs copy-on-write if the snapshot
does not already have a copy.
To view a snapshot, it is mounted like any other file system (using
the vnd driver so that the snapshot file appears as a
device).
Snapshots are possible using Soft Updates, because the on-disk
structure is always consistent. Without Soft Updates, the status of
the file system at any point in time may not be consistent and errors
would occur.
Clotho is a block-based snapshotting system that is fully file-system
agnostic [16].
Clotho stacks on top of a device, and logically divides the device
into a primary data segment (PDS) and backup data
segment (BDS). Only the space in the PDS is exposed to the
higher-level block device.
If a block is written to, then if the block is only part of the
current version, the existing block is simply overwritten. If the
block is part of a past version, then the data is written in a new
location on the physical device. By writing to a new location, Clotho
does not use I/O bandwidth to make a copy of the old data.
This allows Clotho to be used for any file system (e.g., Ext2 or
Reiserfs); or even for database servers that require a raw partition.
Clotho uses block differences to compact snapshots to reduce space
utilization within the BDS.
Venti is not a snapshotting system, but rather an archival block-based
storage system that a snapshotting system could be based on.
In Venti the blocks are addressed by a unique hash of the block's
contents [50]. Since the block's contents and address
are interchangeable, Venti is inherently a write-once system. Since
a block is addressed by its contents, there are no duplicate blocks in
the file system. This property can be exploited for building an
efficient snapshotting system, because space is not utilized for the
duplicated data within snapshots.
4.2 Disk-Based File Systems
4.2.1 Write Anywhere File Layout
The Write Anywhere File Layout (WAFL) was designed by Network Appliance
specifically for NFS servers [24]. WAFL uses inodes like
FFS-like file systems, but stores meta-data within files. One
important characteristic of WAFL is the ability to take a read-only
snapshot of the file system. Users can access old versions through a
.snapshot directory in each directory.
Since WAFL uses files instead of fixed locations (e.g., at the
beginning of cylinder groups as in FFS-like file systems) to store
meta-data, updated meta-data can be located anywhere on disk.
In WAFL, the root inode describes the inode meta-data file. To create
a snapshot, the root inode is copied. On subsequent writes,
copy-on-write is used to create the backup copies.
When WAFL uses copy-on-write to avoid duplicating disk blocks that are
common between a snapshot and the active file system.
Episode [9] is similar to WAFL but less efficient.
Episode must copy the entire inode tree for each snapshot, whereas
WAFL must copy only the root inode.
Ext3cow extends Ext3 to support snapshots by changing ext3's on-disk
and in-memory meta-data structures [44]. To take a
snapshot, ext3cow adds the current time to a list of snapshots in the
super-block. Each inode is augmented with an epoch. When a write to
an inode crosses a snapshot boundary, per-block copy-on-write takes
place.
One interesting aspect of Ext3cow is that it avoids data copies within
memory and does not duplicate pages or buffers within the cache.
To access a snapshot, a user opens file@epoch, where
file is the filename and
epoch is the number of seconds since the UNIX epoch (January
1, 1970).
4.2.3 Elephant File System
The Elephant file system is a copy-on-write versioning file system
implemented on the FreeBSD 2.2.8 kernel [56].
Elephant transparently creates a new version of a file on the first
write to an open file. Elephant also provides users with four
retention policies: keep one, keep all, keep safe, and keep landmark.
Keep one is no versioning; keep all retains every version of a file;
keep safe keeps versions for a specific period of time but does not
retain the long term history of the file; and keep landmark
retains only important versions in a file's history. A user can mark
a version as a landmark or the system uses heuristics to mark other
versions as landmark versions.
Elephant also provides users with the ability to register their own
space reclamation policies.
4.2.4 Comprehensive Versioning File System
The Comprehensive Versioning File System (CVFS) is a versioning system
designed with security in mind [64,62].
Each individual write or the smallest meta-data change (including
atime updates) results in a new version. Since many versions are
created, new on-disk data structures were designed so that old
versions can be stored and accessed efficiently.
As CVFS was designed for security purposes, it does not have
facilities for the user to access or customize versioning.
4.3 Stackable File Systems
4.3.1 Unionfs Snapshotting and Sandboxing
Fan-out file systems are a new class of stackable file systems that
layer functionality on top of several existing file systems. As can
be seen in Figure 4.1, a fan-out file system, like
Unionfs, calls several underlying file systems in turn
[20].
Unionfs virtually merges or unifies several underlying directories
into a single view.
It is difficult to provide a perfect illusion of a virtual unification
of a set of files while maintaining Unix semantics.
Since Unionfs calls several underlying file systems, each of which
returns success or failure, Unionfs must carefully order operations so
that the user-visible file system reflects the state of the whole union.
To preserve consistency, Unionfs defines a precedence for branches,
and carefully orders operations to ensure that the user is presented
with a consistent view.
Figure 4.1: Call paths of fanout file systems.
Unionfs is the first implementation of a true stackable fan-out file
system. All underlying branches are directly accessed by Unionfs
which allows it to be more intelligent and efficient. Unionfs
supports a mix of read-only and read-write branches, features not
previously supported on any unioning file system.
Unionfs also supports the dynamic addition and deletion of any branch
of any precedence, whereas previous systems only allowed the highest
or lowest precedence branch to be added or removed.
In FreeBSD, union mounts provide similar functionality, but instead of
using a fan-out structure use a linear stack [43].
FreeBSD Union mounts do not support many of the advanced features that
Unionfs does, including dynamic insertion and deletion of branches;
multiple read-write branches; and support for any underlying file
system.
Since Unionfs was designed with versatility in mind, it is useful for
new applications. Of particular interest to this paper is Unionfs's
ability to take a snapshot. Unionfs defines a priority for branches,
branches to the left have a higher priority than branches to the
right. For snapshots, branches to the left contain more recent data
and branches to the right contain less recent data. To take a
snapshot at time tn, a new high-priority branch (n) is added, and
all the lower priority branches (n-1,n-2,...,0) are marked read
only. The new branch is originally empty, but once new data is
written, it is written to the new branch. To view a snapshot taken at
time i, all that needs to be done is unify branches
i-1,i-2,...,0.
Unionfs transparently migrates files open for writing to the new
branch.
Unionfs also supports sandboxing using split-view caches.
If an intrusion detection system (IDS) detects that a process is
suspicious, then the two most common options are to alert the
administrator or terminate the process. Sandboxing provides a middle
ground: the suspect (or
bad) process or processes continues to run, but it does not
change the data seen by other processes (good processes) or have
access to newly created data.
In our own recent work we have designed a lightweight user-oriented
versioning file system called Versionfs
[38]. Many writes end up overwriting the same data
(e.g., a text editor often rewrites the whole file even if only a few
bytes have changed). Versionfs employs a copy-on-change
technique. After a write occurs, Versionfs compares the old contents
with the new contents. If a change was made, then Versionfs creates a
new version.
Since Versionfs is stackable, it works with any file system, whether
local or remote. Versionfs also provides a host of user-configurable
policies: versioning by users, groups, processes, or file names and
extensions; version retention policies by maximum number of versions
kept, age, or total space consumed by versions of a file; version
storage policies using full copies, compressed copies, or page deltas.
Versionfs creates file versions automatically, transparently, and in a
file-system portable manner-while maintaining Unix semantics.
4.4 User-level Libraries
4.4.1 Cedar File System
The Cedar File System is a distributed file system that supports only
immutable files [18]. By supporting only immutable files,
Cedar eliminates cache consistency issues on the clients (because the
clients will always have a consistent view of each file).
In the Cedar File System, users have to copy files to a local disk and
edit it there. To version it they have to transfer the file to a
remote server (via FTP) and this would create a new immutable version
on the server. Cedar is also not portable as it works only with a
particular file system.
4.4.2 3D File System
The 3D File System (3DFS) adds a third dimension to the file system
[32,17]. Standard UNIX file systems have two dimensions:
the present working directory "." and the parent directory
"..". 3DFS allows users to change to the "..."
directory, which exposes previous versions of the file system.
3DFS provides a library that can be used for versioning. Version
Control System (VCS) is a prototype that is built to demonstrate the
usefulness of the library. Versioning in VCS has to be done with
explicit commands like checkin, checkout, etc. A
version file is conceptually organized like a directory, but it
returns a reference to only one of the files in the directory. To
decide which version must be selected, each process keeps a
version-mapping table that specifies the rules of version selection of
a file. However, to use this, all programs have to be linked with
libraries provided. Another disadvantage of this system is that
directories are not versioned.
4.5 Applications
CVS [4] is a popular user-land tool that is used for source
code management. It is also not transparent as users have to execute
commands to create and access versions. Rational ClearCase
[25] is another user-land tool that is used for source
code management. However, it requires an administrator dedicated to
it and is also expensive. Other notable user-space versioning systems
include Subversion [10], OpenCM [59], and
BitKeeper [5]. SubVersion is meant to be a replacement
for CVS and includes atomic commits, versions are created per commit
(as opposed to CVS which independently creates versions for each file
that is part of a commit), improved network resource utilization, and
efficient handling of binary files. OpenCM is another CVS
replacement. OpenCM includes rename support, access controls,
cryptographic authentication, and provides integrity checks.
BitKeeper is versioning control system centered around source code,
and is used for Linux kernel development. BitKeeper has merging
algorithms that allow engineers to quickly merge several branches.
The primary disadvantage of using applications solutions is the same
as for encryption systems: the user must be aware of the versioning.
When versioning is used to avoid data loss, users must proactively
commit their data.
When versioning for security auditing, these systems are even less
useful, because the attacker will not correctly version files (and may
even attempt to delete the versions).
Chapter 5
Operating System Changes
In this chapter we discuss various operating system changes we have
made to improve extensible secure file systems.
In Section 5.1 we describe split-view caches.
In Section 5.2 we describe cache-cleaning within NCryptfs.
In Section 5.3 we describe file revalidation in the VFS.
In Section 5.4 we discuss our implementation of
task-private data and on-exit callbacks.
In Section 5.5 we describe user-land callbacks
from kernel-space.
In Section 5.6 we discuss how we implemented ad-hoc
groups in NCryptfs.
5.1 Split-View Caches
Normally, the operating system maintains a single view of the
namespace for all users. This limits file system functionality.
For example, in file cloaking each user can only see the files that he
or she has permission to access [63]. This improves
privacy and prevents users from learning information about files they
are not entitled to access. To implement this functionality in a
range-mapping NFS server, caches had to be bypassed.
Unionfs can divert any process to an alternative view of the file
system. This functionality can be integrated with an IDS to create a
sandboxing file system. Using a filter provided by the IDS, Unionfs
can direct good processes to one view of the union, and bad processes
to another view of the union.
In Linux, each mount point has an associated vfsmount structure.
This structure points to the super-block that is mounted and its root
dentry. It is possible for multiple vfsmount's to point to a
single super-block, but each vfsmount points to only one super
block and root.
When the VFS is performing a lookup operation and comes across a mount
point, there is an associated vfsmount structure. The VFS
simply dereferences the root dentry pointer, and follows it into the mounted
file system.
To implement split-view caches we modified the generic
super_operations operations vector to include a new method,
select_super. Now, when the VFS comes across a mount point,
it invokes select_super (if it is defined), which returns the
appropriate root entry to use for this operation.
This rich new interface was accomplished with minimal VFS changes:
only eight new lines of core kernel code were required.
Internally, Unionfs needs to support the ability to have multiple root
dentries at once. To do this we create a parallel Unionfs view that
is almost a completely independent file system. The new view has its
own super-block, dentries, and inodes. This creates a parallel cache
that is used for each of the views. However Unionfs uses the
lower-level file systems' data cache, so the actual data pages are not
duplicated. This improves performance and eliminates data cache
coherency problems.
The two views are connected through the super-blocks so that when the
original Unionfs view is unmounted, so are the new views.
Figure 5.1 shows the VFS structures after a process is
sandboxed.
In this example we started with a union that had two branches. The
first branch t1 contains the basis, and then t2 contains a
incremental changes for a snapshot. In the figure the super-block of
this union is represented as SU and its root dentry is DU. The
super-blocks of the lower-level file systems are St1 and
St2, and their root dentries are Dt1 and Dt2.
Assume that an IDS detected a suspicious (or bad) process is detected
at time t3, then it can be sandboxed as follows. First a new view
of the union is created for the suspect process or processes. This is
accomplished by creating a new super-block and root dentry structure
(SU¢ and DU¢, respectively). In this view a new branch b3
is added as the highest priority branch, and branches t1 and t2
are marked read-only. In the original view, a new branch g3 is
added as the highest priority branch, and the existing branches are
marked read-only. If the bad process writes data, then the write is
directed to bn and the data seen by good processes is untouched.
If a good process writes data, then the bad processes will not see it.
Figure 5.1: S represents a super-block; D represents a root dentry. U is the original Unionfs super-block; U¢ is alternate or bad view; b3 is the branch that is used for sandboxing bad processes; g3 is used by good processes; t2 and t1 form the basis of the snapshot.
5.2 Cache Cleaning
Cleartext pages normally exist in the page cache. Unused name data
and metadata may remain in the dcache and icache, respectively. If a
system is compromised, then this data is vulnerable to attack. For
example, an attacker can examine memory (through /dev/kmem or
by loading a module). To limit this exposure, NCryptfs evicts
cleartext pages from the page cache, periodically and on detach (when
the association between the NCryptfs mount and the underlying file
system is removed). Unused dentries and inodes are also evicted from
the dcache and icache, respectively. For added security at the
expense of performance, NCryptfs can purge cleartext data from caches
more often. In this situation, the decryption expense is incurred for
each file system operation, but I/O time is not increased if the
ciphertext pages (e.g., Ext2 pages) are already in the cache.
Zero-Interaction Authentication (ZIA), another encryption file system
based on Cryptfs, takes the approach of encrypting all pages when an
authentication expires [11]. This is less efficient than
the NCryptfs method, because ZIA will also maintain copies of pages in
the lower-level file system. ZIA requires the initial encryption of
pages, and will use memory for these encrypted pages.
5.3 File Revalidation
The VFS provides methods for ensuring that both cached dentry and
inode objects are valid before it uses them. To check the freshness
of objects, the VFS calls revalidate and
d_revalidate on inodes and dentries, respectively.
This is used for NFS, SMBFS, and other network file systems to ensure
that the cache did not become stale compared to the server. In
Unionfs, the same mechanism is used to efficiently add and remove
branches. Unionfs compares the generation numbers in the inode and
the dentry with the generation number in the super-block. If the
generation numbers do not match, Unionfs refreshes the data structures
from the lower-level file systems.
However, file objects have no such revalidation method. This is
shortcoming that is especially acute for stackable file systems
because the upper-level file object is very much like a cache of the
lower-level file object or objects.
In Unionfs this becomes important when a snapshot is taken. If the
file is not revalidated, then writes can continue to affect read-only
branches. With file revalidation, Unionfs detects that its branch
configuration has changed and appropriately updates the file object.
Our current prototype of file-level revalidation is implemented at the
entry point of each Unionfs file method to allow Unionfs to operate
with an unmodified kernel.
However, some simple system calls such as fstat read the file
structure without first validating its contents.
Ideally, the VFS should handle this functionality so that the service
is exposed to all file systems.
5.4 On-Exit Callbacks
Linux does not provide a way for kernel components to register
interest in the death of a process. We extended the Linux kernel to
allow an arbitrary number of private data fields and corresponding
callback functions to be added to the per-process data structure,
struct task. When a process exits, the kernel first executes
any callback functions before destroying the task object.
NCryptfs uses such callbacks in two ways. First, when processes die,
we immediately remove any active sessions that are no longer valid
(e.g., if the last process in a session dies, we remove the NCryptfs
active session).
The alternative to on-exit callbacks would have been to use a separate
kernel thread to perform periodic garbage collection, but that leaves
security data vulnerable for an unacceptably long window. If an
authenticated process terminates and the active session remains valid,
then an attacker can quickly create many processes to hijack the
active session entry. Using the on-exit callback, the information is
invalidated before the process ID can be reused. Also with on-exit
callbacks we release memory resources as soon as they are no longer
needed.
The second use for private per-process data is in NCryptfs's
challenge-response authentication ioctl, which proceeds as follows.
First, the user process runs an ioctl to request a challenge. We
generate a random challenge, store it as task-private data, and then
send the challenge's size back to the user. Second, the user
allocates a buffer and calls the ioctl again. This time the kernel
actually returns the challenge data. The user performs some function
on the data (e.g., HMAC-MD5 [33]), that requires some
piece of secret knowledge to transform the data. Finally, the user
program calls the ioctl a third time with the response. If the
response matches what the kernel expects, then the user is
authenticated. Using the task private data sets up a transaction
between the kernel and a task. Even though there are several ioctls
in this authentication sequence, it is no different than if a process
had authenticated itself using a single ioctl. The challenge and its
size are not useful to an attacker, since the challenge can only be
used for a single authentication attempt. Only the last ioctl call
modifies the state of the task. Finally, if an authentication is
aborted, then the challenge is discarded on process termination.
Task private data has several uses outside of NCryptfs. In our
Compound System Calls (CoSy) implementation there is a shared
user-kernel buffer that enables zero-copy system calls
[48,47,49]. Task private data is
used to efficiently free this shared buffer on exit. Our Elastic
Quota system also makes use of task-private data to store per-user
policies [74,75].
5.5 User-Space Callbacks
User-space callbacks allow the kernel to offload difficult
functionality to user-space and provide for richer interaction with
users. Presently, Linux invokes a user-space program,
modprobe, to handle the task of loading kernel modules on
demand. This offloads complicated parsing of configuration files and
processing to user space.
We have integrated user-space callbacks with our file system to allow
for enhanced usability. When a user sets a timeout in NCryptfs, they
can also specify a user-space helper.
As seen in Figure 5.2, this helper may, for example,
prompt the user to reenter their key so that the operation can
continue.
Figure 5.2: Using user-space callbacks, NC-Tools can be automatically called when a key timeout occurs.
The NCryptfs user-space callback code works similarly to the
modprobe helper code. To execute a new helper, a new kernel
thread is created. From inside the new kernel thread, the
exec system call is used to replace the current process image
and the user-mode helper begins to execute. Instead of executing the
helper as root using the file system context of init (as is
done with modprobe), NCryptfs uses the current user ID and
the current process's file system context (i.e., root file system and
working directory).
We believe these types of callbacks from kernel to user space are
essential to providing an easy-to-use interface for new file system
functionality.
5.6 Bypassing VFS Permissions
NCryptfs supports native UNIX groups like any other entity. A UNIX
group has some disadvantages, primarily that a group needs to be setup by
the system administrator ahead of time. This means that users must
contact the system administrator, and then wait for action to be
taken.
NCryptfs supports ad-hoc groups by simply adding authorizations for
several individual users (or other entities). The problem with this
approach is that each additional user must have permissions to modify
the lower level objects, since NCryptfs by default respects the
standard lower-level file system checks. If the permissions on the
lower level objects are relaxed, then new users can modify the
files. However, without a corresponding UNIX group, it is difficult to
give permissions to precisely the subset of users that must have them.
If the permissions are too relaxed, then rogue users can trivially
destroy the data and cryptanalysis become easier-even without the
system being compromised.
NCryptfs's bypass-VFS-permissions option solves this problem. The owner of
the attach can delegate this permission (assuming root has given it to
the owner). When this is enabled, NCryptfs performs all permission
checks independently of the lower-level file system. This allows
NCryptfs to be used for a wider range of applications
When intercepting permissions checks, it is trivial to implement a
policy that is more restrictive than the underlying file system's
normal UNIX mode-bit checks. To support ad-hoc groups without
changing lower-level file systems, however, NCryptfs needed to
completely ignore the lower-level file system's mode bits so that
NCryptfs could implement its own authentication checks and yet appear
to access the lower-level files as their owner.
The flow of an NCryptfs operation that must bypass VFS permissions
(e.g., unlink) is as follows:
sys_unlink { /* system call service routine */
vfs_unlink { /* VFS method */
call nc_permission()
if not permitted: return error
nc_unlink { /* NCryptfs method */
call nc_perm_preop() /* code we added */
vfs_unlink { /* VFS method */
call ext2_permission()
if not permitted: return error
call ext2_unlink() /* EXT2 method */
} /* end of inner vfs_unlink */
call nc_perm_fixup() /* code we added */
} /* end of nc_unlink */
} /* end of outer vfs_unlink */
} /* end of sys_unlink */
The VFS operation (e.g., vfs_unlink) checks the permission
using the nc_permission function. If the permission check
succeeds, the corresponding NCryptfs-specific operation is called
(e.g., nc_unlink). NCryptfs locates the lower-level object
and again calls the VFS operation. The VFS operation checks
permissions for the lower-level inode before calling the lower-level
operation. This control flow means that we can not actually intercept
the lower-level permission call. Instead, we change
current->fsuid to the owner of the lower-level object before
the operation is performed and restore it afterward, which is done in
nc_perm_preop and nc_perm_fixup, respectively.
We change only the permissions of the current task, and the process
can not perform any additional operations until we restore the
current->fsuid and return from the NCryptfs function. This
ensures that only one lower file system operation can be performed
between nc_perm_preop and nc_perm_fixup.
Using bypass VFS permissions, we have also implemented POSIX ACLs
[26,19] in a stackable file system. In this
file system, ACLs are stored in a Berkeley Database
[58] and can be layered over any other file system
(e.g., Ext2 or VFAT).
Linux 2.6 will have Linux Security Modules (LSMs) that allow the
interception of many security operations [68].
Unfortunately, the LSM framework is not sufficient to bypass
lower-level permissions either. Their VFS calls the
file-system-specific permission operation first. The LSM permissions
operation is called only if the file-system-specific operation
succeeds. The LSM operation can allow or deny access only to objects
that the file system has already permitted. A better solution is to
consult the file-system-specific permission operation. This result
should be passed to the LSM module which can make the final decision,
possibly based on the file-system-specific result.
Chapter 6
Conclusions and Future Work
The contributions of this work are that we have presented a survey of
available file encryption and snapshotting systems. We have performed
a comprehensive performance comparison of five representative
encryption systems: Cryptoloop using a device as a backing store,
Cryptoloop using a file as a backing store, EFS, CFS, and NCryptfs.
We have developed several operating system changes to support our work on
secure file systems.
Split-view caches allow different processes to have distinct views of
the same namespace.
File revalidation allows the file system to perform appropriate access
checks and ensure that objects reflect true system state.
On-exit callbacks close an attacker's window of opportunity by
expunging authentication data precisely when it becomes invalid. When
combined with task private data, on-exit callbacks are also useful for
a wide variety of non-security applications.
User-space callbacks allow rich new interaction between the user and
the file system.
The ability for a stackable file system to bypass VFS permissions
allows us to layer useful new functionality, like ACLs, over existing
file systems.
The rest of this Chapter is organized as follows. Section
6.1 discusses our conclusions about snapshotting
and versioning systems. Section 6.2 discusses our
conclusions about cryptographic file systems. We present possible
future directions in Section 6.3.
6.1 Snapshotting and Versioning Systems
From our survey of snapshotting and versioning systems, and our own work, we believe
that both have distinct roles. Snapshotting systems are an ideal
augmentation to full system backups; snapshots allow the administrator to
almost instantly capture the state of the file system at one point in
time.
On the other hand, versioning systems allow individual users to have
control over their files and easily correct mistakes. For security,
versioning systems give the administrator a more complete view of the
system's changes, which is useful for forensics.
Most snapshotting systems require knowledge of both the block-level
and the file system. Examples of these systems include FreeBSD Soft
Updates, WAFL, and Ext3Cow.
We believe block-level and file system snapshotting functionality
should be separate, because snapshotting is a useful service that
should not have to be re-implemented for each file system.
Clotho changes only the block level, and allows any file system to be
snapshotted [16]. Unionfs can layer snapshotting on top of
existing file systems, without the knowledge of the block level or even
over network file systems (e.g., NFS or CIFS) [20].
Versioning systems at the file system level are a useful for users.
Disk-based file systems, like Elephant or CVFS, require replacing
existing file systems. Stackable file systems can layer on top of
existing systems, so we believe that they are the best candidate for
most installations. If versions are needed for each modification
(e.g., atime updates), then disk-based file systems are a good
alternative to stackable file systems because they can employ
specialized on-disk structures for efficient version storage.
User-level libraries and applications are cumbersome, and because they
do not export a true file system interface can not be used with all
applications or for security purposes.
6.2 Cryptographic File Systems
From our cryptographic file system performance study we draw five
conclusions:
- It is often suggested that entire file systems should not be
encrypted because of performance penalties. We believe that
encrypting an entire hard disk is practical. Systems such as
Cryptoloop that can encrypt an entire partition are able to make
effective use of the buffer cache in order to prevent many encryption
and decryption operations.
- For single process workloads, I/O is the limiting factor, but
the encryption operations lie along a critical path in the I/O
subsystem. Since I/O operations can not complete until the
encryption/decryption is done, encryption negatively impacts
performance in some cases.
- The loop device was able to scale along with the underlying
file system for both metadata and I/O-intensive operations.
NCryptfs was able to scale along with the file system for
metadata operations, but not for I/O-intensive operations. The
single threaded nature of CFS limits its scalability. EFS and
NTFS did not perform well for the workload with many
concurrent files, but EFS was able to exploit concurrent
processes in both the Postmark and IOMeter test.
- The effect of caching can not be underestimated when comparing
cryptographic file systems. Caches not only decrease the
number of I/O operations, but they also avoid costly
encryption operations. Even though Blowfish is almost twice
as fast as AES on our machines, their results were quite
similar, in large part because many I/O requests are served
out of the cache.
- When heavily interleaving disk and CPU operations unexpected
effects often occur. Furthermore, these effects are not necessarily
gradual degradation of performance, but rather large spikes in the
graph. Adjusting any number of things (memory, disk speed, or other
kernel parameters) can expose or hide such effects. For
performance-critical applications, the specific hardware, operating
system, and file system must be benchmarked with both the expected
workload as well as lighter and heavier workloads.
Based on our study, we believe block devices are a promising way to
encrypt data for installations that do not need the advanced
features that can only be provided by a file system (e.g., ad-hoc
groups or per-file permissions). However, there are still two major
problems with the state of block-based encryption systems.
First, loop devices using a file as a backing store are not currently
opened with O_SYNC. This means that even though the file
system contained in the encrypted volume flushes data to the block
device, the underlying file system does not flush the data. This
interaction increases performance (even when compared to the native
file system) at the expense of reliability and integrity constraints.
This should be changed in future releases of Cryptoloop.
NCryptfs and CFS also do not respect the O_SYNC flag, but
for different reasons. NCryptfs does not because of the VFS call
path, and CFS simply uses all asynchronous I/O.
Second, there are a large number of block-based encryption systems,
for the same and different operating systems, but they are not
compatible due to different block sizes, IV calculation methods, key
derivation techniques, and disk layouts. For these systems to gain
more wide-spread use they should support a common on-disk format. A
common format would be particularly useful for removable media (e.g.,
USB drives).
Stackable or disk-based file systems are useful when more advanced
features are required. The following three issues should be
addressed.
First, the write-through implementation used by FiST results in more
encryption operations than are required. A write-back implementation
would allow writes to be coalesced in the upper-level file system.
Second, the encoding size of NCryptfs should be smaller than PAGE_SIZE in
order to reduce computational overhead.
Third, the FiST stackable file system templates should have a buffer
cache mode. Presently, FiST uses only the page cache, but to ensure
good performance the Linux VFS design relies on functionality provided
by the buffer cache. Also, the Linux VFS is designed in such a way
that file systems that do not use the buffer cache do not have their
writes throttled and are more prone to deadlock.
Unfortunately, the buffer cache design relies upon device drivers. In
our file system built on top of the Berkeley Database, we use a buffer
cache design with a pseudo-device driver. We will take a similar
approach to improve our FiST templates.
6.3 Future Work
Confidentiality can currently be protected through cryptographic file
systems, but most systems do not yet properly ensure the integrity of
data.
Using tweakable block ciphers, integrity is improved because changes
are more noticeable and cut-and-paste attacks are not possible.
However, without increasing the size of the device, it is impossible
to automatically detect and be assured that the data read from the
device was the data that was written to the device.
Both a file system or loopback device that stores cryptographic
checksums of data would greatly increase the overall usefulness of
cryptographic file systems.
Many storage solutions already use extra space to improve availability
in the form of RAID, so we believe that the extra space for
cryptographic checksums to assure integrity would be well worth it.
We will investigate the performance impact of checksumming, and the
most efficient place to store these checksums (interspersed with data
or in a separate location).
Memory-mapped operations are efficient because they allow applications
to access data with fewer context switches into the kernel. This
performance advantage does however complicate secure file system
design, because data is accessed without the file system's knowledge.
We will develop a new API for file systems to validate mmaped
accesses to their data. Since this will likely have a large impact
on mmap performance, we will design our API to be flexible: a
file system may only want to validate reads or writes, or there may be
an acceptable window between accesses (e.g., if a process is granted
access once, then it remains authorized for the next second).
This API will allow improved snapshotting and improved authentication
checks for cryptographic file systems. Since the page fault handler
will be more flexible, this API will also allow new functionality
aside from security applications (e.g., compressed memory).
The virtual file system should include a centralized, stacking-aware
cache manager. This would have several benefits. First, file systems
that do not manipulate file data (e.g., Unionfs or Tracefs) could keep
a single copy of data pages in the cache and still intercept data
manipulation operations.
This would improve both performance and flexibility.
A stackable file system that filters data (e.g., NCryptfs) could
inform the lower level system that caching this data is not useful.
For NCryptfs, eliminating double-buffering would decrease encryption
and I/O operations.
Heidemann developed a unified cache manager for stackable file
systems, but his solution only considered the page cache; and
considered only a single linear stack
[23]. We will design and build a more
flexible and efficient unified caching system for all file system data
(data pages, inodes, directory entries, etc.), which also considers
the important class of fanout file systems.
Bibliography
- [1]
-
IOMeter.
http://iometer.sourceforge.net, August 2003.
- [2]
-
AIM Technology.
AIM Multiuser Benchmark - Suite VII Version 1.1.
http://sourceforge.net/projects/aimbench, 2001.
- [3]
-
Backup Direct.
Value of business data.
www.backupdirect.net/about_situation_today.htm, 2004.
- [4]
-
B. Berliner and J. Polk.
Concurrent Versions System (CVS).
www.cvshome.org, 2001.
- [5]
-
BitMover.
Bitkeeper - the scalable distributed software configuration
management system.
www.bitkeeper.com, 2004.
- [6]
-
M. Blaze.
A cryptographic file system for Unix.
In Proceedings of the first ACM Conference on Computer and
Communications Security, 1993.
- [7]
-
R. Bryant, D. Raddatz, and R. Sunshine.
PenguinoMeter: A New File-I/O Benchmark for Linux.
In Proceedings of the Fifth Annual Linux Showcase &
Conference, pages 5-10, Oakland, CA, November 2001.
- [8]
-
G. Cattaneo, L. Catuogno, A. Del Sorbo, and P. Persiano.
The Design and Implementation of a Transparent Cryptographic
Filesystem for UNIX.
In Proceedings of the Annual USENIX Technical Conference,
FREENIX Track, pages 245-252, June 2001.
- [9]
-
S. Chutani, O. T. Anderson, M. L. Kazar, B. W. Leverett, W. A. Mason, and R. N.
Sidebotham.
The Episode file system.
In Proceedings of the USENIX Winter 1992 Technical
Conference, pages 43-60, San Francisco, CA, 1992.
- [10]
-
CollabNet, Inc.
Subversion.
http://subversion.tigris.org, 2004.
- [11]
-
M. Corner and B. D. Noble.
Zero-interaction authentication.
In The Eigth ACM Conference on Mobile Computing and Networking,
September 2002.
- [12]
-
Department of Commerce: National Institute of Standards and Technology.
Announcing Development of a Federal Information Processing Standard
for Advanced Encryption Standard.
Technical Report Docket No. 960924272-6272-01, January 1997.
- [13]
-
R. Dowdeswell and J. Ioannidis.
The CryptoGraphic Disk Driver.
In Proceedings of the Annual USENIX Technical Conference,
FREENIX Track, June 2003.
- [14]
-
D. Ellard and M. Seltzer.
NFS Tricks and Benchmarking Traps.
In Proceedings of the Annual USENIX Technical Conference,
FREENIX Track, pages 101-114, June 2003.
- [15]
-
First Backup.
First backup product overview.
www.firstbackup.com/Product, 2004.
- [16]
-
M. D. Flouris and A. Bilas.
Clotho: Transparent Data Versioning at the Block I/O Level.
In Proceedings of the 12th NASA Goddard, 21st IEEE Conference on
Mass Storage Systems and Technologies (MSST 2004), pages 315-328, April
2004.
- [17]
-
G. Fowler, D. Korn, S. North, H. Rao, and K. Vo.
Practical Reusable Unix Software, chapter 2: Libraries and
File System Architecture.
J. Wiley & Sons, Inc., 1995.
- [18]
-
D. K. Gifford, R. M. Needham, and M. D. Schroeder.
The Cedar File System.
Communications of the ACM, 31(3):288-298, 1988.
- [19]
-
A. Grüenbacher.
Extended attributes and access control lists.
http://acl.bestbits.at, 2002.
- [20]
-
P. Gupta, H. Krishnan, C. P. Wright, M. Zubair, J. Dave, and E. Zadok.
Versatility and Unix Semantics in a Fan-Out Unification File
System.
Technical Report FSL-04-01, Computer Science Department, Stony Brook
University, January 2004.
www.fsl.cs.sunysb.edu/docs/unionfs-tr/unionfs.pdf.
- [21]
-
P. C. Gutmann.
Secure filesystem (SFS) for DOS/Windows.
www.cs.auckland.ac.nz/~pgut001/sfs/index.html, 1994.
- [22]
-
S. Halevi and P. Rogaway.
A tweakable enciphering mode.
In Advances in Cryptology - CRYPTO 2003, 23rd Annual
International Cryptology Conference, volume 2729 of Lecture Notes in
Computer Science, pages 428-499, Santa Barbara, CA, August 2003. Springer.
- [23]
-
J. Heidemann and G. Popek.
Performance of cache coherence in stackable filing.
In Proceedings of Fifteenth ACM Symposium on Operating Systems
Principles. ACM SIGOPS, 1995.
- [24]
-
D. Hitz, J. Lau, and M. Malcolm.
File System Design for an NFS File Server Appliance.
In Proceedings of the USENIX Winter Technical Conference, pages
235-245, January 1994.
- [25]
-
IBM Rational.
Rational clearcase.
www.rational.com/products/clearcase/index.jsp.
- [26]
-
IEEE/ANSI.
Information Technology-Portable Operating System Interface
(POSIX)-Part 1: System Application Program Interface (API)-Amendment:
Protection, Audit, and Control Interfaces [C Language].
Technical Report STD-1003.1e draft standard 17, ISO/IEC, October
1997.
Draft was withdrawn in 1997.
- [27]
-
Jetico, Inc.
BestCrypt software home page.
www.jetico.com, 2002.
- [28]
-
P. H. Kamp.
gdbe(4), October 2002.
FreeBSD Kernel Interfaces Manual, Section 4.
- [29]
-
J. Katcher.
PostMark: a New Filesystem Benchmark.
Technical Report TR3022, Network Appliance, 1997.
www.netapp.com/tech_library/3022.html.
- [30]
-
K. Keeton, C. Santos, D. Beyer, J. Chase, and J. Wilkes.
Designing for disasters.
In Proceedings of the Third USENIX Conference on File and
Storage Technologies (FAST 2004), pages 59-72, San Francisco, CA,
March/April 2004.
- [31]
-
W. Koch.
The GNU privacy guard.
www.gnupg.org, August 2003.
- [32]
-
D. G. Korn and E. Krell.
The 3-D File System.
In Proceedings of the USENIX Summer Conference, pages 147-156,
Summer 1989.
- [33]
-
H. Krawczyk, M. Bellare, and R. Canetti.
HMAC: Keyed-hashing for message authentication.
Technical Report RFC 2104, Internet Activities Board, February
1997.
- [34]
-
E. Mauriello.
TCFS: Transparent Cryptographic File System.
Linux Journal, (40), August 1997.
- [35]
-
A. D. McDonald and M. G. Kuhn.
StegFS: A Steganographic File System for Linux.
In Information Hiding, pages 462-477, 1999.
- [36]
-
M. K. McKusick and G. R. Ganger.
Soft Updates: A technique for eliminating most synchronous writes
in the fast filesystem.
In Proceedings of the Annual USENIX Technical Conference,
FREENIX Track, pages 1-18, JUNE 1999.
- [37]
-
Microsoft Corporation.
Encrypting File System for Windows 2000.
Technical report, July 1999.
www.microsoft.com/windows2000/techinfo/howitworks/security/encrypt.asp.
- [38]
-
K. Muniswamy-Reddy, C. P. Wright, A. Himmer, and E. Zadok.
A Versatile and User-Oriented Versioning File System.
In Proceedings of the Third USENIX Conference on File and
Storage Technologies (FAST 2004), pages 115-128, San Francisco, CA,
March/April 2004.
- [39]
-
R. Nagar.
Windows NT File System Internals: A developer's Guide, pages
615-67.
O'Reilly, September 1997.
Section: Filter Drivers.
- [40]
-
National Institute of Standards and Technology.
FIPS PUB 46-3: Data Encryption Standard (DES).
National Institute for Standards and Technology, Gaithersburg, MD,
USA, October 1999.
- [41]
-
J. Nechvatal, E. Barker, L. Bassham, W. Burr, M. Dworkin, J. Foti, and
E. Roback.
Report on the Development of the Advanced Encryption Standard
(AES).
Technical report, Department of Commerce: National Institute of
Standards and Technology, October 2000.
- [42]
-
J. Nugent, A. Arpaci-Dusseau, and R. Arpaci-Dusseau.
Controlling Your PLACE in the File System with Gray-box Techniques.
In Proceedings of the Annual USENIX Technical Conference, pages
311-323, June 2003.
- [43]
-
J. S. Pendry and M. K. McKusick.
Union mounts in 4.4BSD-Lite.
In Proceedings of the USENIX Technical Conference on UNIX and
Advanced Computing Systems, pages 25-33, December 1995.
- [44]
-
Z. N. J. Peterson and R. C. Burns.
Ext3cow: The design, Implementation, and Analysis of Metadat for a
Time-Shifting File System.
Technical Report HSSL-2003-03, Computer Science Department, The Johns
Hopkins University, 2003.
http://hssl.cs.jhu.edu/papers/peterson-ext3cow03.pdf.
- [45]
-
R. Power.
Computer Crime and Security Survey.
Computer Security Institute, VIII(1):1-24, 2002.
www.gocsi.com/press/20020407.html.
- [46]
-
The OpenSSL Project.
Openssl: The open source toolkit for SSL/TLS.
www.openssl.org, April 2003.
- [47]
-
A. Purohit.
A System for Improving Application Performance Through System Call
Composition.
Master's thesis, Stony Brook University, June 2003.
Technical Report FSL-03-01,
www.fsl.cs.sunysb.edu/docs/amit-ms-thesis/cosy.pdf.
- [48]
-
A. Purohit, J. Spadavecchia, C. Wright, and E. Zadok.
Improving Application Performance Through System Call Composition.
Technical Report FSL-02-01, Computer Science Department, Stony Brook
University, June 2003.
www.fsl.cs.sunysb.edu/docs/cosy-perf/cosy.pdf.
- [49]
-
A. Purohit, C. Wright, J. Spadavecchia, and E. Zadok.
Develop in User-Land, Run in Kernel Mode.
In Proceedings of the 2003 ACM Workshop on Hot Topics in
Operating Systems (HotOS IX), May 2003.
- [50]
-
S. Quinlan and S. Dorward.
Venti: a new approach to archival storage.
In Proceedings of First USENIX conference on File and Storage
Technologies, pages 89-101, January 2002.
- [51]
-
R. Richardson.
Computer Crime and Security Survey.
Computer Security Institute, VIII(1):1-21, 2003.
www.gocsi.com/press/20030528.html.
- [52]
-
E. Riedel, M. Kallahalla, and R. Swaminathan.
A Framework for Evaluating Storage System Security.
In Proceedings of the First USENIX Conference on File and
Storage Technologies (FAST 2002), pages 15-30, Monterey, CA, January 2002.
- [53]
-
H. V. Riedel.
The GNU/Linux CryptoAPI site.
www.kerneli.org, August 2003.
- [54]
-
RSA Laboratories.
Password-Based Cryptography Standard.
Technical Report PKCS #5, RSA Data Security, March 1999.
- [55]
-
J. H. Saltzer.
Hazards of file encryption.
Technical report, 1981.
http://web.mit.edu/afs/athena.mit.edu/user/other/a/Saltzer/www/publications/csrrfc208.html.
- [56]
-
D. S. Santry, M. J. Feeley, N. C. Hutchinson, A. C. Veitch, R.W. Carton, and
J. Ofir.
Deciding When to Forget in the Elephant File System.
In Proceedings of the 17th ACM Symposium on Operating Systems
Principles, pages 110-123, December 1999.
- [57]
-
B. Schneier.
Applied Cryptography.
John Wiley & Sons, second edition, October 1995.
- [58]
-
M. Seltzer and O. Yigit.
A new hashing package for UNIX.
In Proceedings of the Winter USENIX Technical Conference, pages
173-84, January 1991.
www.sleepycat.com.
- [59]
-
J. Shapiro.
OpenCM.
www.opencm.org, 2004.
- [60]
-
S. Shepler, B. Callaghan, D. Robinson, R. Thurlow, C. Beame, M. Eisler, and
D. Noveck.
NFS Version 4 Protocol.
Technical Report RFC 3010, Network Working Group, December 2000.
- [61]
-
D. A. Solomon and M. E. Russinovich.
Inside Microsoft Windows 2000, chapter 12: File Systems,
pages 683-778.
Microsoft Press, 2000.
- [62]
-
Craig A. N. Soules, Garth R. Goodson, John D. Strunk, and Gregory R. Ganger.
Metadata Efficiency in Versioning File Systems.
In Proceedings of the Second USENIX Conference on File and
Storage Technologies, pages 43-58, March 2003.
- [63]
-
J. Spadavecchia and E. Zadok.
Enhancing NFS Cross-Administrative Domain Access.
In Proceedings of the Annual USENIX Technical Conference,
FREENIX Track, pages 181-194, June 2002.
- [64]
-
J. D. Strunk, G. R. Goodson, M. L. Scheinholtz, C. A. N. Soules, and G. R.
Ganger.
Self-Securing Storage: Protecting Data in Compromised Systems.
In Proceedings of the Fourth Symposium on Operating Systems
Design and Implementation, pages 165-180, October 2000.
- [65]
-
D. Tang and M. Seltzer.
Lies, Damned Lies, and File System Benchmarks.
Technical Report TR-34-94, Harvard University, December 1994.
In VINO: The 1994 Fall Harvest.
- [66]
-
VERITAS Software.
VERITAS File Server Edition Performance Brief: A PostMark 1.11
Benchmark Comparison.
Technical report, Veritas Software Corporation, June 1999.
http://eval.veritas.com/webfiles/docs/fsedition-postmark.pdf.
- [67]
-
A. Whitten and J. D. Tygar.
Why Johnny can't encrypt: A usability evaluation of PGP 5.0.
In Proceedings of the Eigth Usenix Security Symposium, August
1999.
- [68]
-
C. Wright, C. Cowan, J. Morris, S. Smalley, and G. Kroah Hartman.
Linux Security Modules: General Security Support for the Linux
Kernel.
In Proceedings of the 11th USENIX Security Symposium, August
2002.
- [69]
-
C. P. Wright, M. Martino, and E. Zadok.
NCryptfs: A Secure and Convenient Cryptographic File System.
In Proceedings of the Annual USENIX Technical Conference, pages
197-210, June 2003.
- [70]
-
E. Zadok.
Linux NFS and Automounter Administration.
Sybex, Inc., May 2001.
- [71]
-
E. Zadok, J. M. Anderson, I. Badulescu, and J. Nieh.
Fast Indexing: Support for size-changing algorithms in stackable
file systems.
In Proceedings of the Annual USENIX Technical Conference, pages
289-304, June 2001.
- [72]
-
E. Zadok, I. Badulescu, and A. Shender.
Cryptfs: A stackable vnode level encryption file system.
Technical Report CUCS-021-98, Computer Science Department, Columbia
University, June 1998.
www.cs.columbia.edu/~library.
- [73]
-
E. Zadok and J. Nieh.
FiST: A Language for Stackable File Systems.
In Proceedings of the Annual USENIX Technical Conference, pages
55-70, June 2000.
- [74]
-
E. Zadok, J. Osborn, A. Shater, C. P. Wright, K. Muniswamy-Reddy, and J. Nieh.
Reducing Storage Management Costs via Informed User-Based Policies.
Technical Report FSL-02-02, Computer Science Department, Stony Brook
University, September 2002.
www.fsl.cs.sunysb.edu/docs/equota-policy/policy.pdf.
- [75]
-
E. Zadok, J. Osborn, A. Shater, C. P. Wright, K. Muniswamy-Reddy, and J. Nieh.
Reducing Storage Management Costs via Informed User-Based Policies.
In Proceedings of the 12th NASA Goddard, 21st IEEE Conference on
Mass Storage Systems and Technologies (MSST 2004), pages 193-197, April
2004.
File translated from
TEX
by
TTH,
version 3.59.
On 8 May 2004, 19:18.
