Using Free Web Storage for Data Backup
Avishay Traeger, Nikolai Joukov, Josef Sipek, and Erez Zadok
Stony Brook University
1
Abstract
Backing up important data is crucial. A variety of causes can lead to
data loss, such as disk failures, administration errors, virus
infiltration, theft, and physical damage to equipment. Users and
businesses have important information that is difficult to replace,
such as financial records and contacts. Reliable backups are crucial
because some data cannot be replaced, while recreating other data can
be expensive in terms of time and money. We propose two methods which
leverage various types of free Web storage to provide simple,
reliable, and free backup solutions.
The first method is based on the storage of data in the caches of
Internet search engines. We have developed CrawlBackup, a tool which
prepares and provides the data for Web crawlers and can then restore
the data from the Internet even if all the data on the original
computer is unavailable. The second method, called MailBackup, stores
redundant copies of the important data in the mailboxes of Internet
mail services. We have successfully used these backup systems since
the middle of 2005. In this paper we discuss and compare these
methods, their feasibility of deployment, their security, and their
flexibility.
1 Introduction
Users and businesses have important information that is difficult to
replace, such as financial records and contacts. It is estimated that
on average, just 20Mb of business data takes 30 hours to recreate and
is worth $100,000 [1].
Redundancy is crucial for backing up important
data [3]. To improve the safety of data
further, redundant copies should be kept in locations which are as
physically (and logically) independent of each other as possible.
This is often difficult to achieve for the average home user or small
corporation, whose computing resources generally reside in one
location. Backup independence is difficult to achieve even for users
in larger corporations or universities who have access to resources in
several locations; these resources are likely to be on the same
network and vulnerable to the same viral infections. Utilizing
free services found on the Internet is ideal in this respect,
because the data will reside on several distinct systems.
Free data hosting has been available for some time now, mostly in the
form of Web hosting, Web-based email, and even picture and video
storage. However, only recently has the amount of storage been enough
to be considered a viable data backup solution. Of these storage
options, email is the simplest and most convenient. Data that needs
backing up can also be placed automatically on a Web page, where
growing number of Web search engines will cache it. As with every
security solution in general [6,13], our
solutions have advantages and disadvantages, discussed in
Section 5.
The key advantage of our proposed backup solutions is that they are
free, which is frequently the winning factor in
practice [7].
In addition to addressing concerns about the safety of the backed up
data, a backup scheme should be simple and mostly automatic, support
versioning, and provide the user with control over the backup
frequency. Simplicity is important so that the backup process is
reliable and easy to use. Automating the process helps to guarantee
that backups will be made in regular intervals and that important data
will not be lost because the user forgot to back it up manually.
Versioning is a useful feature, because it is often the case that
users need to refer to older records. In addition, it provides an
extra level of safety in case a corrupted version of a file was backed
up, leaving the user with no usable copies. Providing users with
control over the backup frequency allows them to balance the amount of
possible data loss with the amount of required storage. The Web-based
backup techniques that we discuss in Sections 3
and 4 address each of these issues to different
extents.
Backing up important files on systems that do not belong to the owner
of the data raises privacy concerns. This is even more true when
using Web search caching, since the data is viewable without a
password. We will address this issue as it applies to each backup
technique and discuss possible solutions. The key idea is encrypting
the data before it is presented to the remote server for storage.
The rest of this paper is organized as follows. We discuss data and
storage sizes in Section 2. We describe our
backup solutions in Sections 3
and 4. Other considerations regarding these
backup techniques are discussed in Section 5. We
discuss prior work in Section 7, and conclude in
Section 8.
2 Quantifying Data's Importance
Virtually all Internet services have some kind of limit on the maximum
file size, as well as the overall storage quota. Interestingly
enough, on a typical server most files are less than 256KB, and
virtually all files are less than 10MB. Additionally, the
distribution of file sizes has remained rather fixed over the past two
decades [2,14,16]. Therefore, file
sizes are not an issue when using Internet services to backup one's
data when one considers the amount of storage offered.
Table 1 shows the amount of storage offered by
several of the most popular email services as of August 2006.
It is immediately clear that the amount of storage offered is large
enough to back up a sizable portion of data. Additionally, one is not
limited to just one account, so the usable storage is potentially even
larger.
System | Storage | Max. Message Size |
Gmail | 2,757 MB | 10 MB |
GMX FreeMail | 1,000 MB | 20 MB |
Hotmail | 250 MB | 10 MB |
Seznam | 2,000 MB | 13 MB |
Yahoo! Mail | 1,000 MB | 10 MB |
Table 1: Total storage and maximum message sizes for some of the
popular email services as of August 2006.
One does not need to backup all data with equal frequency. Files
can be divided into four distinct classes depending on how frequently
they need to be backed up [20].
- The first class consists of files important to the user, such as
word processor documents, spreadsheets, and bank records. These files
should be backed up frequently.
- The second class, which consumes 82-85% of storage, includes
those files that have not been accessed in more than a
month [2]. Files in this class can be compressed to
recover space and do not need to be backed up as frequently.
- Third, multimedia files can be re-encoded. If a lossy
compression algorithm is used, some of the original data will be lost.
This is usually not a problem with file formats such as JPEG and MP3.
These files can be backed up less frequently than others.
- The last class is made up of files that can be regenerated.
Studies show that over 20% of all files are
regenerable [15]. These files need not be backed up.
3 Backups Using Search Engine
Caching
Internet search engines' crawlers periodically crawl the Internet,
indexing and storing some types of discovered resources in their
caches. This allows accessing these resources even if they are no
longer available at their original location. Some people benefited
from these caches by recovering their Web sites after accidental
deletion, hardware failures, or hacker attacks [4].
Therefore, the logical conclusion is to use these search engine caches
to store redundant copies of important data.
We have developed CrawlBackup-a tool that provides data to
the Internet crawlers, finds it in the Internet later and returns it
back to the users. We have used this to back up important personal
data since the middle of 2005.
3.1 Operation
CrawlBackup consists of two shell scripts: CrawlBackupCGI (a CGI
script) and CrawlBackupRestore. The CrawlBackupCGI script is linked
from some public Web page with the target directory or a file as a CGI
script parameter. CrawlBackupCGI performs the following actions:
- Checks its configuration file to verify that it is allowed to backup
the requested data.
-
Checks if any of the files were modified since the last backup time
based on the modification times of the files.
-
Creates a single compressed tar file of the requested data.
-
Optionally encrypts the data for privacy reasons, currently with a
symmetric key.
-
Creates a uuencoded representation.
-
Generates the final page that consists of
- The header with the backup identifier and backup date and time.
The backup identifier is used to find the generated page later. It
usually contains the name of the original directory that was backed up
to allow manual searches for the data later on.
- The data generated in the previous steps.
- The CrawlBackupRestore script, which is included to restore the
original data in case the script is corrupted together with the data.
The CrawlBackupRestore script is invoked manually and performs the
following actions:
- Finds the page generated by the CrawlBackupCGI by sending requests
with the page identifier to a number of search engines. This step
must be performed manually if the CrawlBackupRestore is unavailable.
-
Extracts the uuencoded part of the page and uudecodes it.
-
Optionally decrypts the data using they user's symmetric key.
-
Decompresses and untars the data.
3.2 Design Considerations
CrawlBackupCGI has a backup scope granularity ranging from
individual files to large directory trees. Every link to the script
corresponds to one such scope. Because CrawlBackupCGI is a CGI
script, it is desirable to limit the execution time of its individual
invocations. Therefore, we split large directories into smaller backup
units when it is necessary.
The CrawlBackupCGI script operates using a configuration file to aid
system administrators in maintaining backup rules for users. The
target directory identifier is provided as a CGI parameter as a part
of the URL for the script. CrawlBackupCGI then verifies that the
requested directory is allowed to be backed up.
During the CrawlBackup design we experimented with different forms of
data representation. In particular, CrawlBackup can convert arbitrary
binary data into HTML pages, PDF documents, and several image formats.
For example, Figure 1 shows a
CrawlBackup-generated page with the data represented as a bitmap image
and HTML. However, we have found the HTML representation to be the
most reliable. This is because data in other file formats may be
corrupted due to compression or rescaling operations performed by
search engines, whereas HTML data is most likely to be cached.
We have also experimented with representing the encrypted data as
text. This was done firstly because we noticed that some search
engines did not cache the uuencoded data. In addition, if search
engines wanted to exclude backed up data from their caches, this would
make it more difficult to recognize it. After optionally encrypting
the data, we use a word list to transform the binary data into words.
This is a similar idea to the S/KEY one-time password
utility [5]. This increases the data size by roughly five
times. It is also possible to use a grammar to create grammatically
correct English sentences rather than choosing any word from a
list [19].
Figure 1: CrawlBackup-generated representation of data in the form
of a bitmap image and as HTML-embedded text.
4 Backups Using Free Email
Storage
Most users have emailed important data to themselves for safekeeping
on a mail server at one point or another. Some email services provide
free storage, and automating the backup process using email can create
a viable backup solution. We are currently developing a prototype of
one such solution, called MailBackup.
4.1 Design Considerations
Creating an automated backup process based on free email services
requires more extensive scripts than those we used for the search
engine caching method. This is due to several factors:
- Web email services do not provide uniform interfaces for
sending, retrieving and managing email. Therefore, we were forced to
look at alternative means of accessing email. The combination of
POP and SMTP allows for access to the
storage provided by the server. All the email services in
Table 1 provide POP access. MailBackup can use
any SMTP server, allowing it to work on any network connected to the
Internet. Gmail, in addition to POP, provides a file-system-like
interface. A Linux user-space file system, GmailFS [8], as
well as a Windows Shell Namespace Extension [18], have
been written to access it. This allows MailBackup to optionally use a
higher level of abstraction and use ordinary system commands and
tools, instead of using mail protocols.
- There is a limit to the total amount of data as well as the
maximum message size one can store using each account (see
Section 2). This mandates an option similar to
that of CrawlBackup to determine the maximum size of messages. Since
email attachments are generally base-64 encoded, the total amount of
storage required will increase.
- Due to the need to use several accounts with potentially
different password, the system maintains a
áuser-name, password,
serverñ mapping and uses the appropriate data to
authenticate and retrieve the status of a backed up chunk. Since data
is still stored on remote servers, the data should be encrypted for
added privacy.
- Spam is not a problem if we apply simple filters which allow
incoming emails from select addresses only. It is possible for spam
to get by the filters only if the originating address is that which
the system expects. If this address is kept confidential and is hard
to guess, getting spam is unlikely.
The MailBackup scripts are more complex than the CrawlBackup scripts
because of their "push" nature. The main difference between
the two types of backup options is that backups to email storage are
created by the user's request and push the data to the server, while
backups to Web search caches are created when the crawler downloads
the data.
The configuration of MailBackup is similar to that of CrawlBackup.
However, in addition to the basic options such as maximum chunk size,
a list of áuser-name, password,
serverñ mappings must be maintained, as well as the
source email address and the SMTP server to use.
The major advantage of MailBackup is the fact that it can be run
manually when the user requires immediate backup or can be set to
automatically run at predetermined intervals. The files and
directories to be backed up are configured in the same way as
CrawlBackup.
There is a separate account manager that keeps track of various
email accounts and passwords. Passwords are stored in encrypted
form, and the user supplies one master password to unlock all accounts.
The account manager must also keep track of quota usage, decide where
to store new backup versions, and know where to find existing backups.
Advanced features, such as mirroring data on multiple mail accounts
and indexing for faster lookups are planned for the future.
4.2 Operation
When MailBackup starts, either for a scheduled backup or manually by
the user, it performs the following basic steps:
- Requests a user-name and password for MailBackup, which is used
to decrypt the email account login information.
- Decides where the backups should be stored, based on quotas and
user-specified policies.
- Creates a tar file of modified that is optionally
compressed and encrypted. If using SMTP, we split the file to fit
into the allowable message size on the email server(s).
- Stores the backup messages using the access method defined for
each email server (currently either SMTP or GmailFS). For SMTP, the
subject of the email message contains the date, time, and the sequence
number of the message within the backup. The body contains a list of
files that were backed up, along with a checksum for the attachment.
For GmailFS, we use the file name for the date and time, and store the
rest of the information in a separate file.
To restore a data from a backup, MailBackup is executed in
restore mode. The user provides a list of files or
directories, and can optionally provide a date and time of the last
known good version. If no time is specified, the latest backed-up
version is retrieved; MailBackup then performs the following steps:
- Scans the messages in the email accounts for the requested
files. If a date and time was specified, MailBackup looks for
the first version before that time.
- Downloads the attachments, computes their checksums, and
verifies the integrity of each attachment.
- Merges files that were split due to message size
quotas.
- Decrypts and uncompresses the files as necessary.
5 Pros, Cons, and Reactions
The obvious advantage of CrawlBackup over other backup techniques is
its simplicity. In particular, a basic CrawlBackupCGI implementation
requires just seven lines and CrawlBackupRestore uses just
six lines of shell script code. Simple implementations usually
have fewer errors and are easier to configure because they can be
completely understood by system administrators. Another advantage of
CrawlBackup is that it is almost impossible for a hacker to gain
access to all copies of the data. Even if the original host with
the data is compromised, the hacker has no control over the search
engines' caches (if an attacker can control all the major search
engines it would be an unprecedented disaster).
Some search engines (e.g., Google) allow manual removal of URLs from
the caches if the hacker can control the pages on the server.
Fortunately, many search engines (e.g., Yahoo! and MSN Search) do not
allow removal of information from their caches before the next crawl
time. This usually leaves enough time to detect the system compromise
and recover the data.
A drawback of CrawlBackup is its inability to completely control the
backup frequency and the duration of the backup copy storage in the
caches. However, this problem is mitigated by (1) automatic backup
frequency adjustments by the search engines, (2) no correlation of
crawl times between search engines, and (3) different storage times of
different search engines. In particular, search engines automatically
adjust their crawling time interval for Web sites that change
frequently. There are many search engines and therefore the average
time between crawling is much smaller than the crawling intervals of
individual search engines. There is a wide diversity between search
engines policies. Some crawl frequently but keep the data for a short
period of time. Others, like archive.org, crawl the Internet
infrequently but keep the data forever.
Perhaps the most significant drawback of CrawlBackup is that search
engines are not obligated to retain cached data. If a search engine
decides to purge its cache for any reason, it will not be held
responsible for any data loss. However, as we have just noted, there
are several search engines, and so it is improbable that the backed up
data will be purged from all caches.
MailBackup gives the user more control over backup frequencies and
allows versioning, but the backup process is more complex. However,
it is easier to compromise a Web-based email account than to gain
access to multiple search engine caches, so the data is less secure.
Another drawback is that users need to manage their email accounts and
be mindful of their respective quotas. This means that they will
either need to delete old versions or create new accounts to increase
space.
Creating multiple accounts raises the question of how the companies
who provide these free Web services will react to mail accounts and
search engine caches being used for data backups. We speculate that
search companies would not want their caches being used to store user
data, and may try to avoid caching it in the future. However, we
believe that creating a small number of email accounts for storing
data would not be problematic. In fact, Google is working on GDrive,
which would allow users to do just that [9].
6 Performance Analysis
We evaluated the overhead of our backup solutions using a
hyperthreaded 3.0 GHz Pentium 4 machine with 2GB of RAM running
Linux 2.6.14. All experiments used a 7200RPM Serial ATA drive. We
ran each test at least ten times and used the Student-t distribution
to compute the 95% confidence intervals for the mean elapsed, system,
user, and wait times. In each case, the half-widths of the confidence
intervals were less than 5% of the mean. Wait time is the elapsed
time less CPU time and consists mostly of I/O.
Because CrawlBackup and MailBackup essentially perform the same
operations, we created one benchmark for both. We measured how long
it took to tar a file, encrypt it and represent the data as ASCII, and
then split the file into 10MB chunks. Whereas CrawlBackup explicitly
creates an ASCII representation, MailBackup does it when sending the
files as email attachments. We chose 10MB because, as
Table 1 shows, most popular Webmail clients allow
a maximum attachment size of 10MB. We used the Gnu Privacy Guard
(GPG) [10] with default settings for encryption and ASCII
conversion, which includes use of the CAST-5 encryption algorithm.

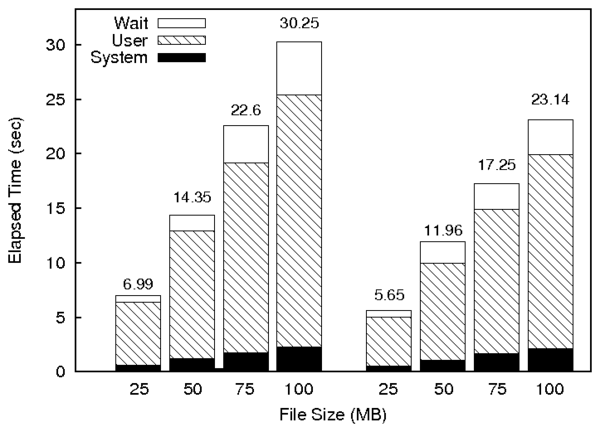

Figure 2: Times for creating backups for various file sizes (left)
and restoring the files (right).
The results are shown in the left-hand side of
Figure 2. We can see that, as expected, the operations
are computationally expensive, and the results are proportional to the
file size. For MailBackup, the results represent the amount of time
users must wait to backup their data, and for CrawlBackup, the amount
of time for the Web server to service the request. It must be noted
that encryption is a fairly CPU-intensive operation, and a Web server
can be put under heavy load if too many requests arrive at once.
Therefore, it is recommended that system administrators restrict
access to the CGI scripts to the search engine crawlers and to trusted
domains to avoid Denial-of-Service attacks. This is a fairly trivial
task with most Web servers. In addition, limiting the amount of
simultaneous CrawlBackup script requests would ensure that several
bots would not overload the server.
In the right-hand side of Figure 2, we see the times to
restore files from a backup. For this benchmark, we reversed the
process of the previous benchmark. We see that it takes less time to
restore the files for all cases. Fast restore time is important even
though backup operations are much more common.
7 Prior Work
Search engine caches have been used to recover previous versions of
websites. Warrick attempts to do this
automatically [12]. Others have created Windows
tools that use free Web-based email services to back up
data [11,17]. These tools simply email
specified files to an email address, and do not support recovery,
multiple accounts, or backup of only modified files. They also do not
split up files to support message size quotas. In addition, some
email services do not allow attachments with certain extensions (such
as exe and chm), so it is not always possible to email
files. Since MailBackup creates archives, it does not have this
problem.
8 Conclusions
| CrawlBackup | MailBackup |
Simplicity | ++ | + |
Portability | ++ | + |
Flexibility | + | ++ |
Hacker/Virus Resistance | ++ | + |
Table 2: Comparison of the CrawlBackup and MailBackup techniques.
Free Web storage can be effectively used as a backup solution for home
users and small businesses. We have investigated two such backup
methods: CrawlBackup and MailBackup. Their differences are summarized
in Table 2. CrawlBackup, which uses search engine
caches to store data, is simpler and more portable than methods that
utilize email storage. This is because most email access methods
cannot use standard system utilities to manage data. On the other
hand, email-based methods provide the user with more options and
flexibility. Finally, while a malicious user may be able to delete
backups stored on mail servers, search engine caches are less prone to
such attacks. Each method has its advantages and disadvantages, but
either can be used as an effective, simple, and inexpensive backup
solution for a large class of users.
9 Acknowledgments
We would like to thank the anonymous program committee reviewers for
their valuable comments; Margo Seltzer (Harvard) for the accidental
motivation of the project; Maxim Lifantsev (Google) for early
discussions about the work; and Shachar Shemesh (Lingnu Open Source
Consulting Ltd.) for the idea of representing encrypted data as
meaningful words.
References
- [1]
-
Backup Direct.
Value of business data.
www.backupdirect.net/about_situation_today.htm, 2004.
- [2]
-
J. M. Bennett, M. A. Bauer, and D. Kinchlea.
Characteristics of files in NFS environments.
ACM SIGSMALL/PC Notes, 18(3-4):18-25, 1992.
- [3]
-
A. Chervenak, V. Vellanki, and Z. Kurmas.
Protecting File Systems: A survey of backup techniques.
In Proc. of Joint IEEE and NASA Mass Storage Conf.,
March 1998.
- [4]
-
R. Dad.
How the Google Cache can Save Your A$$.
Smart Money Daily, December 2005.
www.smartmoneydaily.com/Business/How-the-Google-Cache-can-Save-You.aspx.
- [5]
-
N. Haller.
The S/KEY One-Time password system.
Tech. Rep. RFC 1760, Network Working Group, Feb 1995.
- [6]
-
R. Hasan, S. Myagmar, A. Lee, and W. Yurcik.
Toward a Threat Model for Storage Systems.
In Proc. of the First ACM Workshop on Storage Security and
Survivability (StorageSS 2005), pp. 94-102, FairFax, VA, November 2005.
ACM.
- [7]
-
R. Hasan, W. Yurcik, and S. Myagmar.
The Evolution of Storage Service Providers: Techniques and
Challenges to Outsourcing Storage.
In Proc. of the First ACM Workshop on Storage Security and
Survivability (StorageSS 2005), pp. 1-8, FairFax, VA, November 2005
- [8]
-
R. Jones.
Gmail Filesystem.
http://richard.jones.name/google-hacks/gmail-filesystem/gmail-filesystem.html.
- [9]
-
M. Kane.
Going for a GDrive with google.
CNET News, 7, March 2006.
http://cnet.com/2061-11199_3-6046686.html.
- [10]
-
W. Koch.
The GNU privacy guard.
gnupg.org, Aug 2003.
- [11]
-
N. Leghari.
GmailSync - Free automated backup solution using Gmail.
http://weblogs.asp.net/nleghari/articles/gmailbackup.aspx.
- [12]
-
F. McCown.
Warrick - Tool for Reconstructing a Website.
www.cs.odu.edu/~fmccown/research/lazy/warrick.html.
- [13]
-
E. Riedel, M. Kallahalla, and R. Swaminathan.
A framework for evaluating storage system security.
In Proc. of the First USENIX Conf. on File and
Storage Technologies, pp. 15-30, Monterey, CA, January 2002.
- [14]
-
D. Roselli, J. R. Lorch, and T. E. Anderson.
A Comparison of File System Workloads.
In Proc. of the Annual USENIX Technical Conf., pp.
41-54, San Diego, CA, June 2000.
- [15]
-
D. S. Santry, M. J. Feeley, N. C. Hutchinson, A. C. Veitch, R. W. Carton, and
J. Ofir.
Deciding When to Forget in the Elephant File System.
In Proc. of the 17th ACM Symposium on Operating Systems
Principles, pp. 110-123, Charleston, SC, December 1999
- [16]
-
Andrew S. Tanenbaum, Jorrit N. Herder, and Herbert Bos.
File size distribution on UNIX systems: then and now.
SIGOPS Operating Systems Review, 40(1):100-104, 2006.
- [17]
-
G. Trapani.
Automatically email yourself file backups.
www.lifehacker.com/software/email/geek-to-live-automatically-email-yourself-file-backups-168156.php.
- [18]
-
B. Viksoe.
GMail Drive shell extension.
www.viksoe.dk/code/gmail.htm.
- [19]
-
P. Wayner.
Disappearing Cryptography: Being and Nothingness on the Net.
Morgan Kaufmann, April 1996.
- [20]
-
E. Zadok, J. Osborn, A. Shater, C. P. Wright, K. Muniswamy-Reddy, and J. Nieh.
Reducing Storage Management Costs via Informed User-Based Policies.
In Proc. of the 12th NASA Goddard, 21st IEEE Conf. on
Mass Storage Systems and Technologies, pp. 193-197, College
Park, MD, April 2004
Footnotes:
1Appears in the proceedings of the Second ACM Workshop on
Storage Security and Survivability (StorageSS 2006). This
work was partially made possible by NSF CAREER
EIA-0133589 and CCR-0310493 awards and HP/Intel
gifts numbers 87128 and 88415.1.
File translated from
TEX
by
TTH,
version 3.76.
On 24 Jul 2007, 23:06.
